Neptune Systems

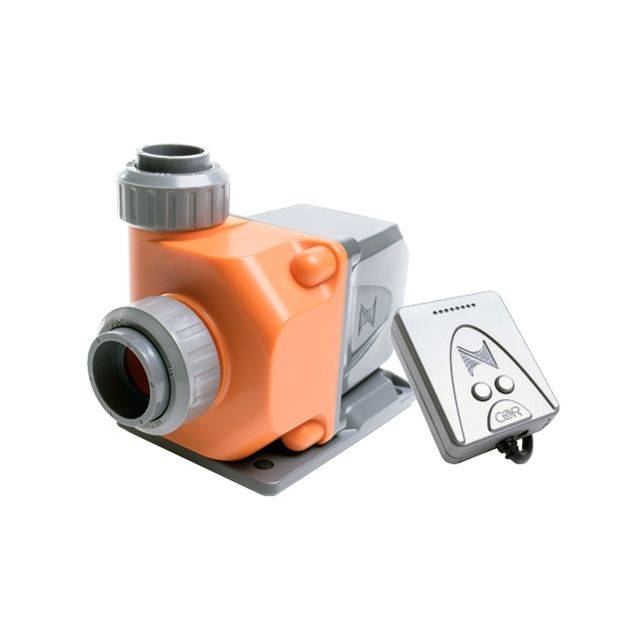

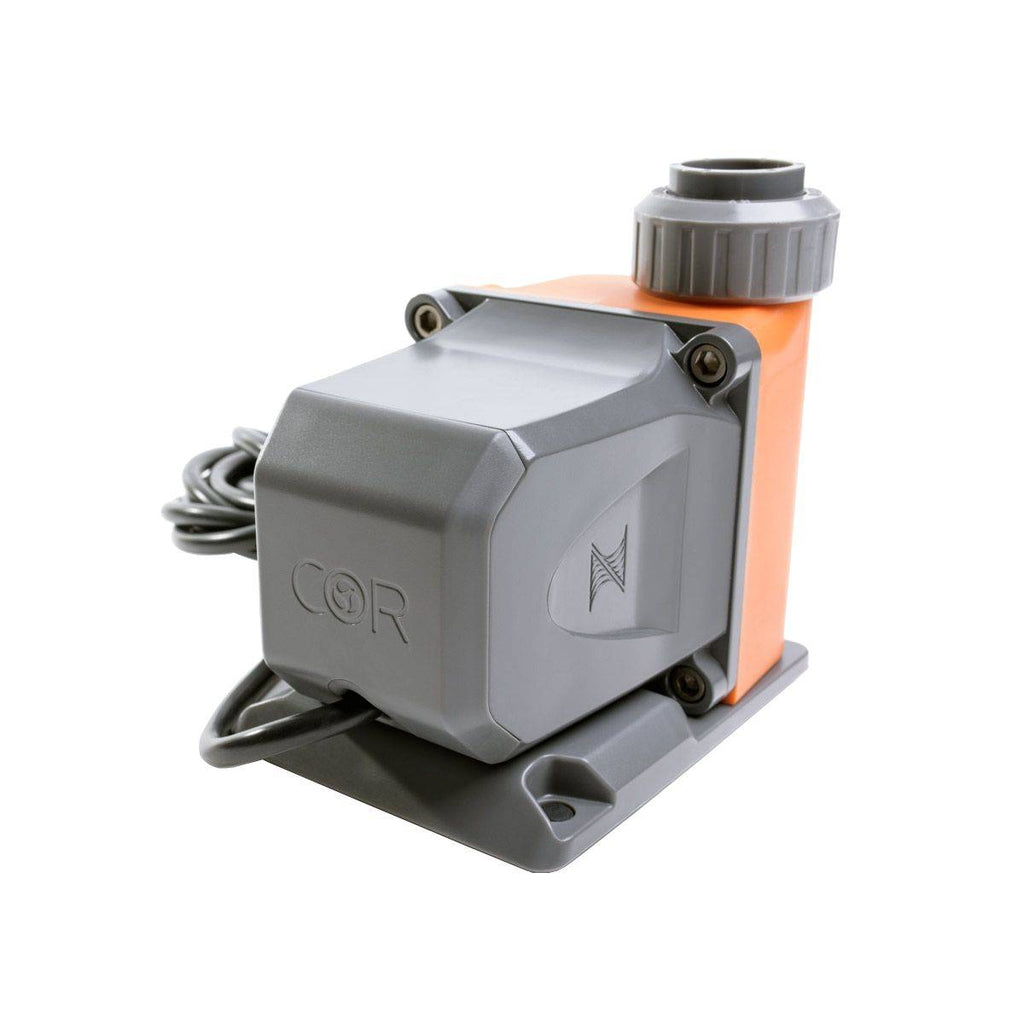

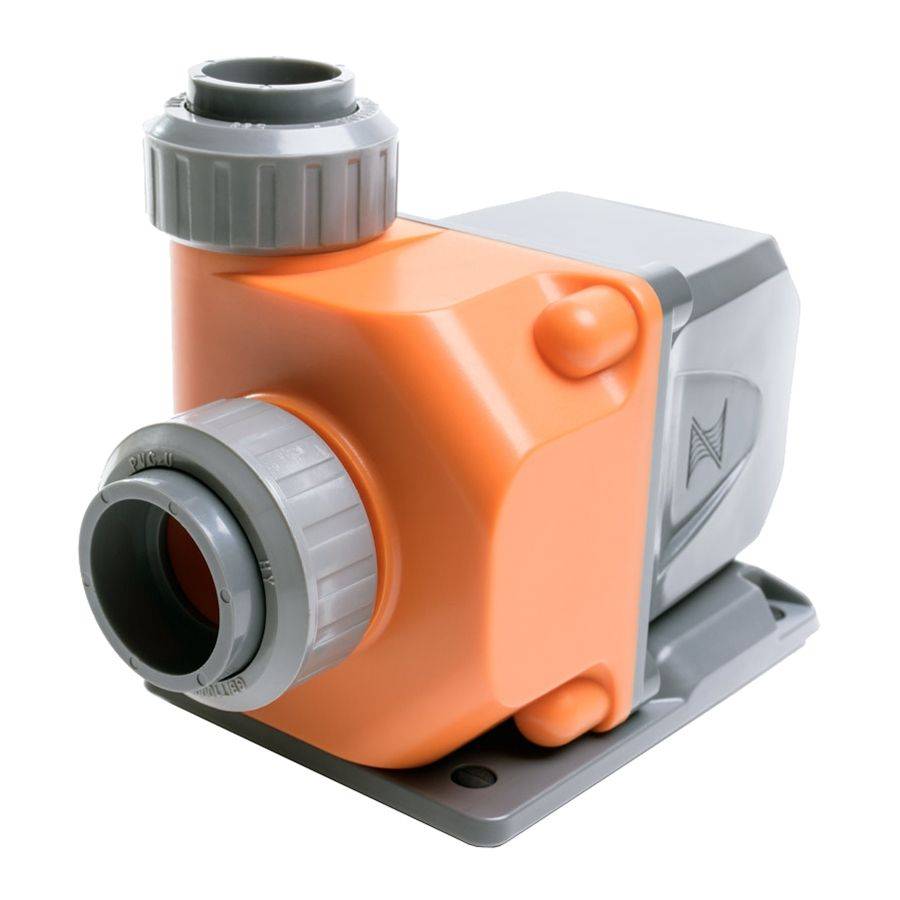

COR-15 Intelligent Return Pump (1500 GPH)
Specifications
| vendor | |
|---|---|
| SKU | |
| manufacturers part number | |
| UPC | |
| Weight | 6.0 lb |
| Product Length | |
| Product Width | |
| Product Height |
Description
The Neptune Systems COR-15 is a controllable DC return pump that delivers up to 1,500 GPH and connects directly to an Apex system through an available 1LINK port. Its variable-speed design allows flow to be adjusted for the aquarium, while Apex integration adds monitoring, automation, and additional pump controls through Apex Fusion.
The COR-15 can be installed internally or externally and includes multiple plumbing fittings. Built-in temperature and obstruction monitoring help protect the pump, while IQ-Level allows minimum and maximum operating speeds to be customized for the system.
Key Features
- Up to 1,500 GPH maximum flow
- Connects directly to an available 1LINK port
- Internal or external installation
- Variable-speed DC operation
- IQ-Level allows custom minimum and maximum speed settings
- Built-in temperature and obstruction monitoring
- Feed Mode
- Compatible with A1, A2, and A3 Apex systems
Apex Control & Monitoring
When connected through 1LINK, the COR-15 can be monitored and controlled through Apex Fusion. Users can adjust pump output, create feed routines, monitor operational status, and receive alerts when the pump operates outside normal conditions.
The COR-15 also monitors internal temperature and can automatically reduce pump speed if temperatures become unsafe, helping protect the pump while giving the user time to address maintenance issues.
Specifications
- Maximum Flow: 1,500 GPH
- Maximum Head: 14 ft
- Pump Dimensions: 3.875" W x 4.875" H x 6.25" D
- Driver Dimensions: 3" W x 4" H x 1" D
- Input: 1" Slip PVC
- Output: 3/4" Slip PVC or 1.25" Slip to BSPP Union
- Power Consumption: Up to 50W
- Power Connection: 1LINK
- Placement: Internal / External
- Apex Compatibility: A1, A2, and A3 Series
- Aquarium Type: Freshwater / Saltwater
What's Included?
- COR-15 Pump
- COR-15 Driver
- 1.25" BSPP to 1.25" Slip Union
- 1" Slip Fitting
- 3/4" Slip Fitting
- 13' 1LINK Cable
Note: The COR-15 requires an Apex controller and an available 1LINK port for operation. It does not operate as a stand-alone pump.
