Neptune Systems

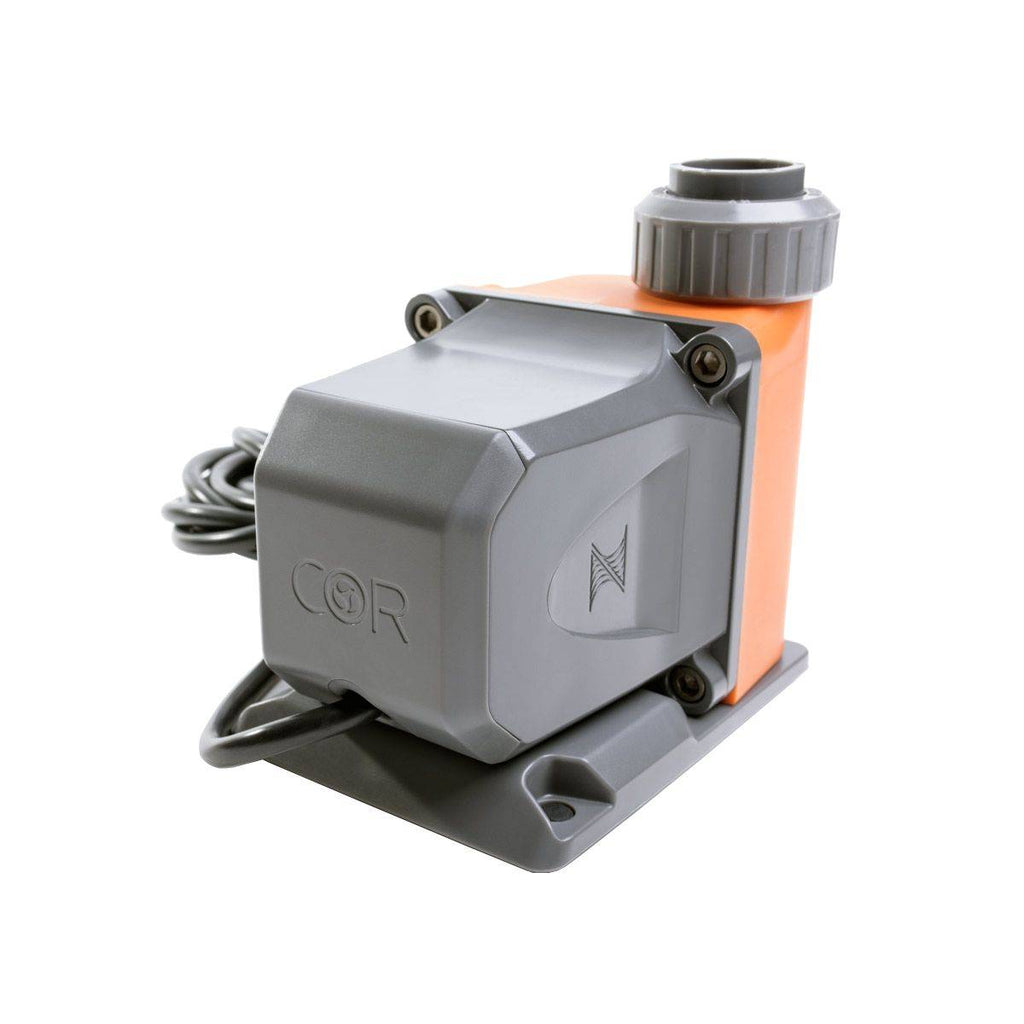

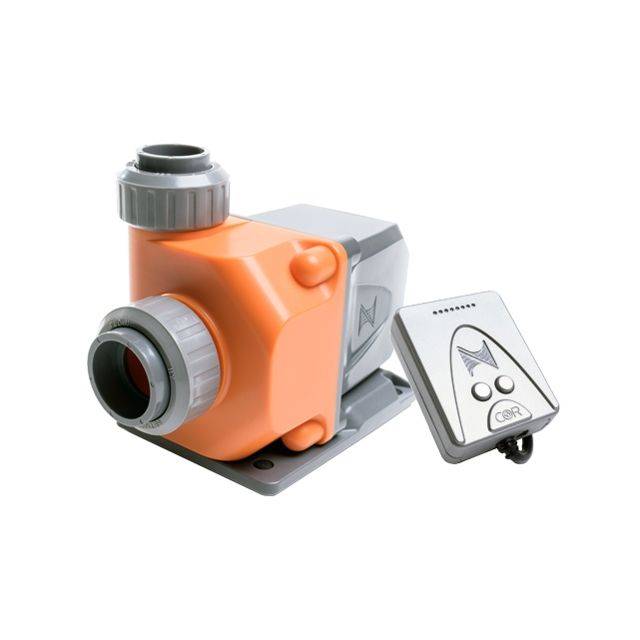

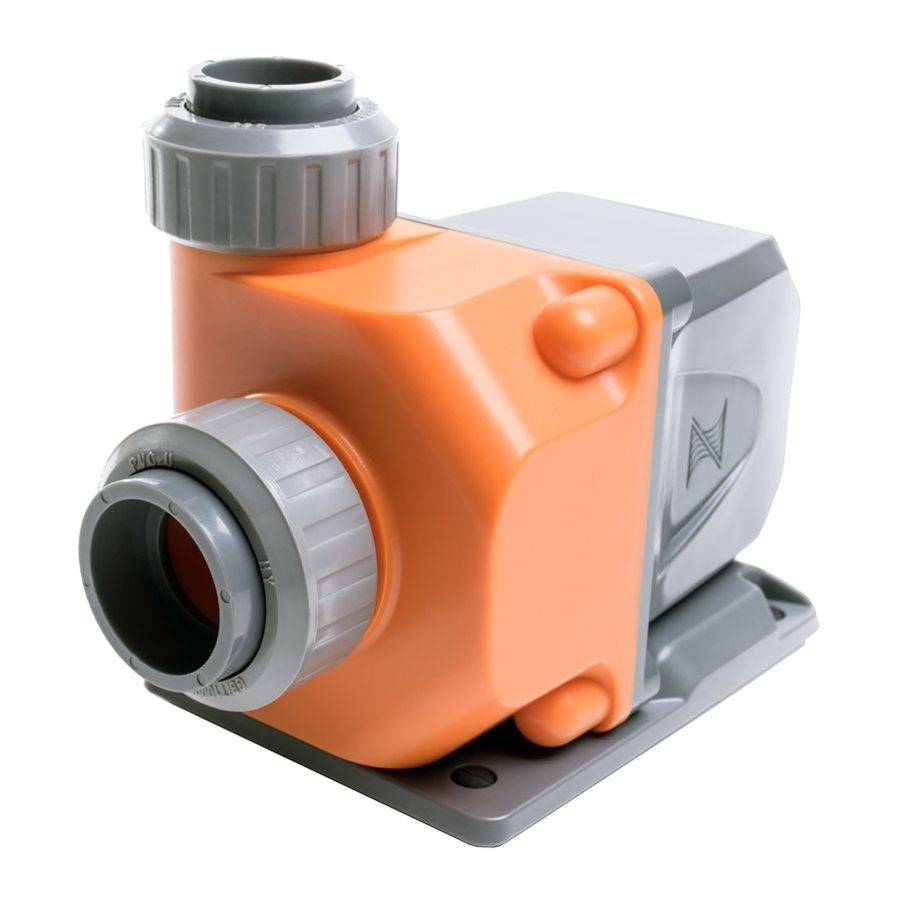

COR-20 Intelligent Return Pump (2000 GPH) - AU Cable
Specifications
| vendor | |
|---|---|
| SKU | |
| manufacturers part number | |
| Weight | 8.0 lb |
| Product Length | |
| Product Width | |
| Product Height |
Description
The Neptune Systems COR-20 is a controllable DC return pump that delivers up to 2,000 GPH and can be used either as a stand-alone pump or connected to any Apex controller. Its variable-speed design allows flow to be adjusted for the aquarium, while Apex integration adds monitoring, automation, and additional pump controls through Apex Fusion.
The COR-20 can be installed internally or externally and includes multiple plumbing fittings. Built-in temperature and obstruction monitoring help protect the pump, while IQ-Level allows minimum and maximum operating speeds to be customized for the system.
Key Features
- Up to 2,000 GPH maximum flow
- Can operate stand-alone or connected to an Apex controller
- Internal or external installation
- Variable-speed DC operation
- IQ-Level allows custom minimum and maximum speed settings
- Built-in temperature and obstruction monitoring
- Feed Mode
- Compatible with A1, A2, and A3 Apex systems
Apex Control & Monitoring
When connected to an Apex through Aquabus, the COR-20 can be monitored and controlled through Apex Fusion. Users can adjust pump output, create feed routines, monitor operational status, and receive alerts when the pump operates outside normal conditions.
The COR-20 also monitors internal temperature and can automatically reduce pump speed if temperatures become unsafe, helping protect the pump while giving the user time to address maintenance issues.
Specifications
- Maximum Flow: 2,000 GPH
- Maximum Head: 20 ft
- Pump Dimensions: 3.875" W x 4.875" H x 6.25" D
- Driver Dimensions: 3" W x 4" H x 1" D
- Input: 1" Slip PVC
- Output: 3/4" Slip PVC or 1.25" Slip to BSPP Union
- Power Consumption: Up to 90W
- Power Supply: 100W
- Placement: Internal / External
- Apex Compatibility: A1, A2, and A3 Series
- Aquarium Type: Freshwater / Saltwater
What's Included?
- COR-20 Pump
- COR-20 Driver
- 100W Power Supply
- 1.25" BSPP to 1.25" Slip Union
- 1" Slip Fitting
- 3/4" Slip Fitting
- 6' Aquabus Cable
Note: An Apex controller is not required for basic stand-alone operation. Apex Fusion monitoring, alerts, and advanced control features require connection to an Apex system.
