Prime 16 HD LED Reef Light - Black Body - EU Cable

Description

The AquaIllumination Prime 16 HD Reef is a compact, fully programmable LED light designed for reef aquariums. Its reef-focused spectrum combines white, blue, royal blue, violet, UV, red, and green channels to support coral growth and coloration while allowing the overall appearance of the aquarium to be adjusted to preference.

HD Power dynamically redistributes available power between color channels, while built-in wireless control allows programming through the Mobius or myAI app. A dedicated moonlight channel is also included for nighttime viewing and lunar-style lighting.

Key Features

• Compact reef LED with a 24" x 24" light spread
• HD Power dynamically redistributes available power between color channels
• Fully adjustable reef spectrum
• Dedicated moonlight channel
• Built-in wireless control through Mobius or myAI
• Compatible with Neptune Fusion control through Apex and the MXM Module
• TIR optics provide a balance of spread, intensity, and color blending

Prime 16 HD Reef Spectrum

The Prime 16 HD Reef uses eight independently controllable LED channels covering white, blue, royal blue, red, green, violet, UV, and moonlight output. HD Power allows unused power from one color channel to be made available to others, providing additional flexibility when creating a custom spectrum.

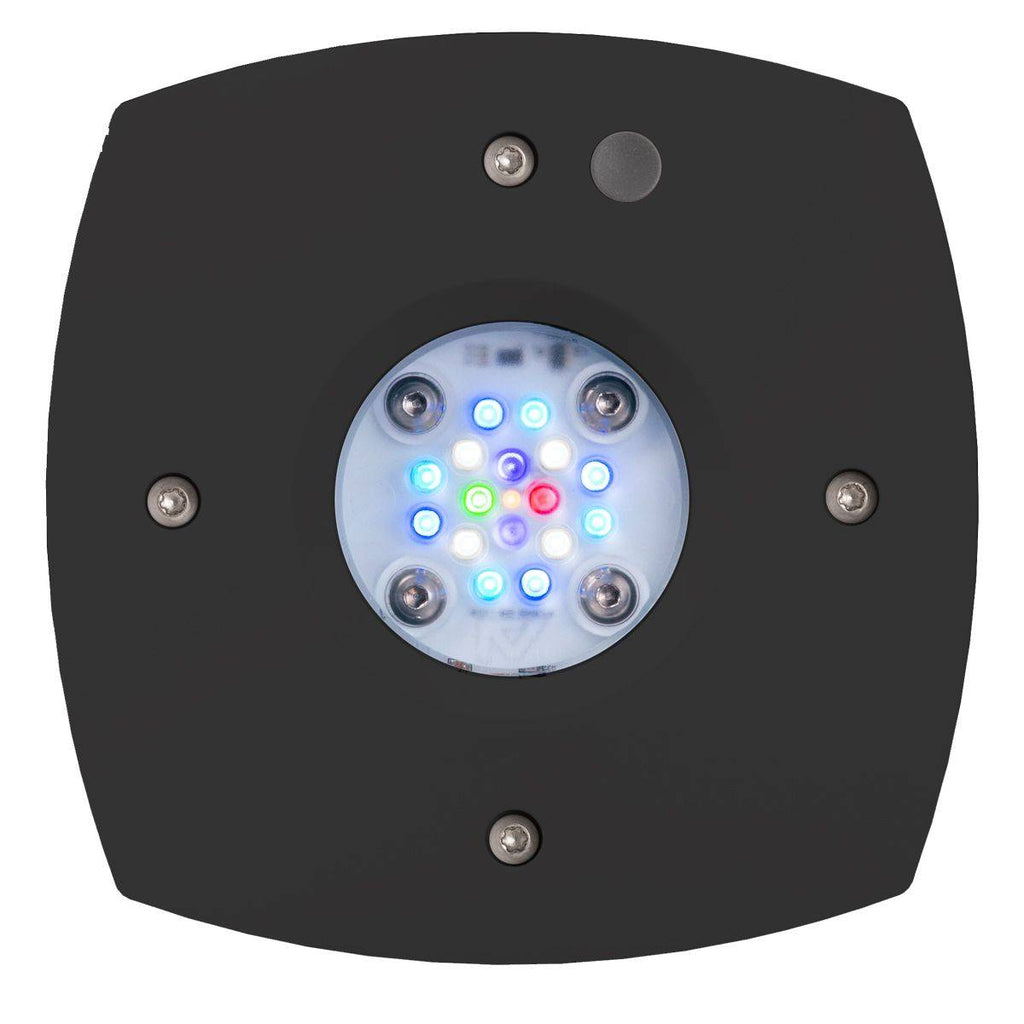

LED Configuration:

Cool White: 4 | Blue: 4 | Royal Blue: 4 | Photo Red: 1 | Green: 1 | Violet: 1 | UV: 1 | Moonlight: 1

Optics and Light Spread

The Prime 16 HD uses TIR lenses designed to balance intensity and spread while improving color blending. AquaIllumination rates the fixture for a 24" x 24" spread, with approximately 100 uMol PAR at a depth of 24 inches under its stated test conditions.

Control and Compatibility

• Mobius: Built-in wireless setup, scheduling, and programming
• myAI: Compatible with the myAI app
• MXM Compatible: Can be controlled through Neptune Fusion when used with an Apex and MXM Module
• Moonlight: Dedicated channel for nighttime and lunar-style lighting

Mounting Options

The Prime 16 HD Reef is compatible with AquaIllumination Prime mounting accessories, including the Prime Tank Mount, Prime Hanging Kit, and Prime Flex Arm. Mounting hardware is sold separately.

Specifications

• Dimensions: 4.88" L x 4.88" W x 1.34" H (12.4 x 12.4 x 3.4 cm)
• Weight: 0.95 lb (0.43 kg)
• Power Consumption: 59W at full power
• Input: 100-240VAC, 50-60Hz
• Cable Length: 20 ft (6.1 m)
• Recommended Spread: 24" x 24"

What's Included?

• AI Prime 16 HD Reef LED Light

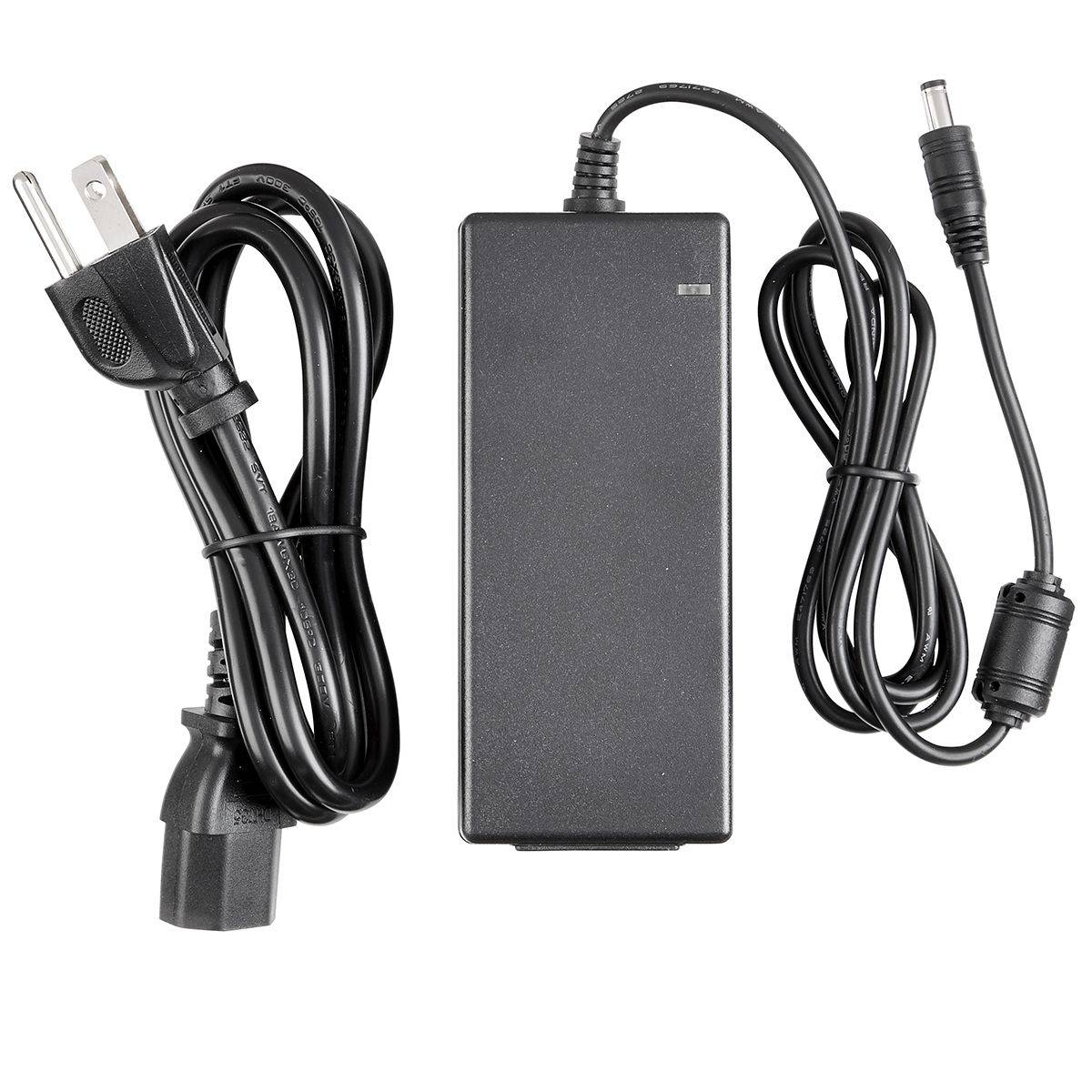

• Power Adapter
• Quick Start Guide
