Description

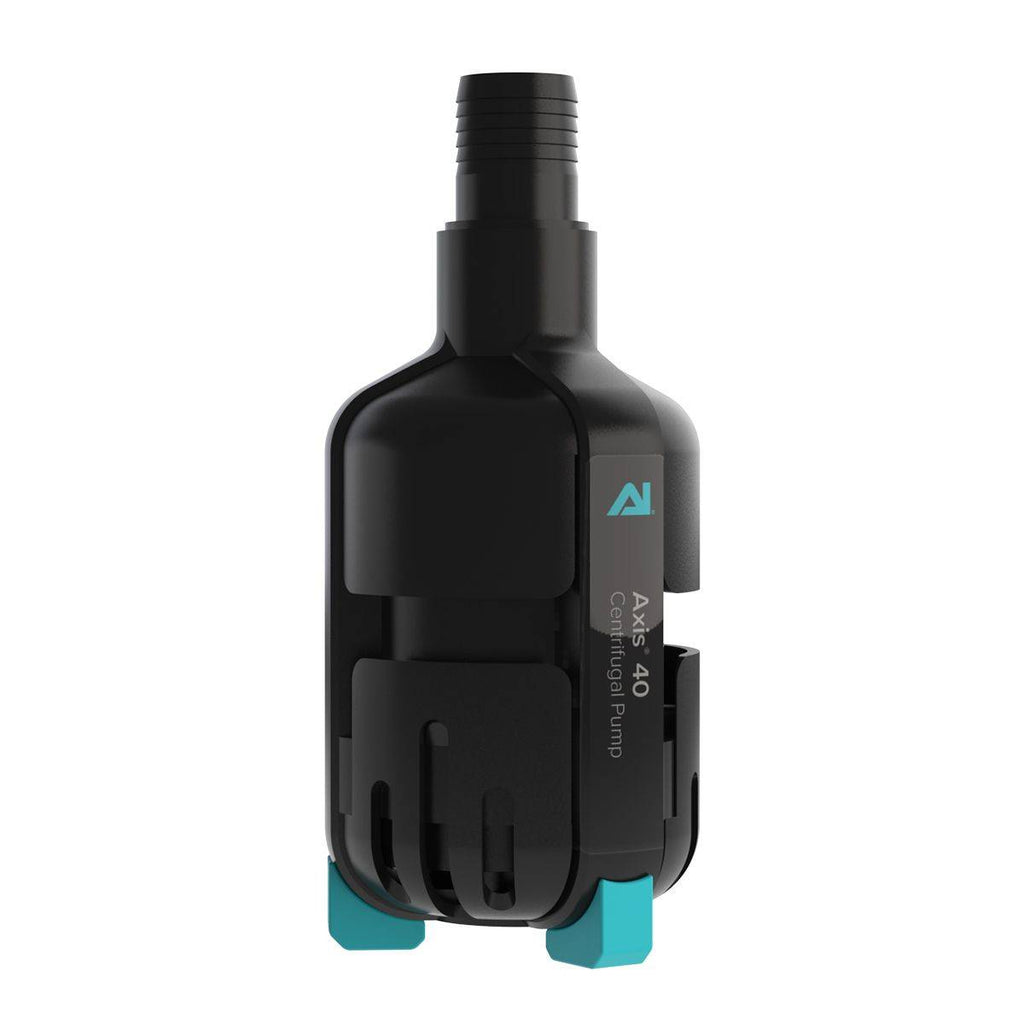

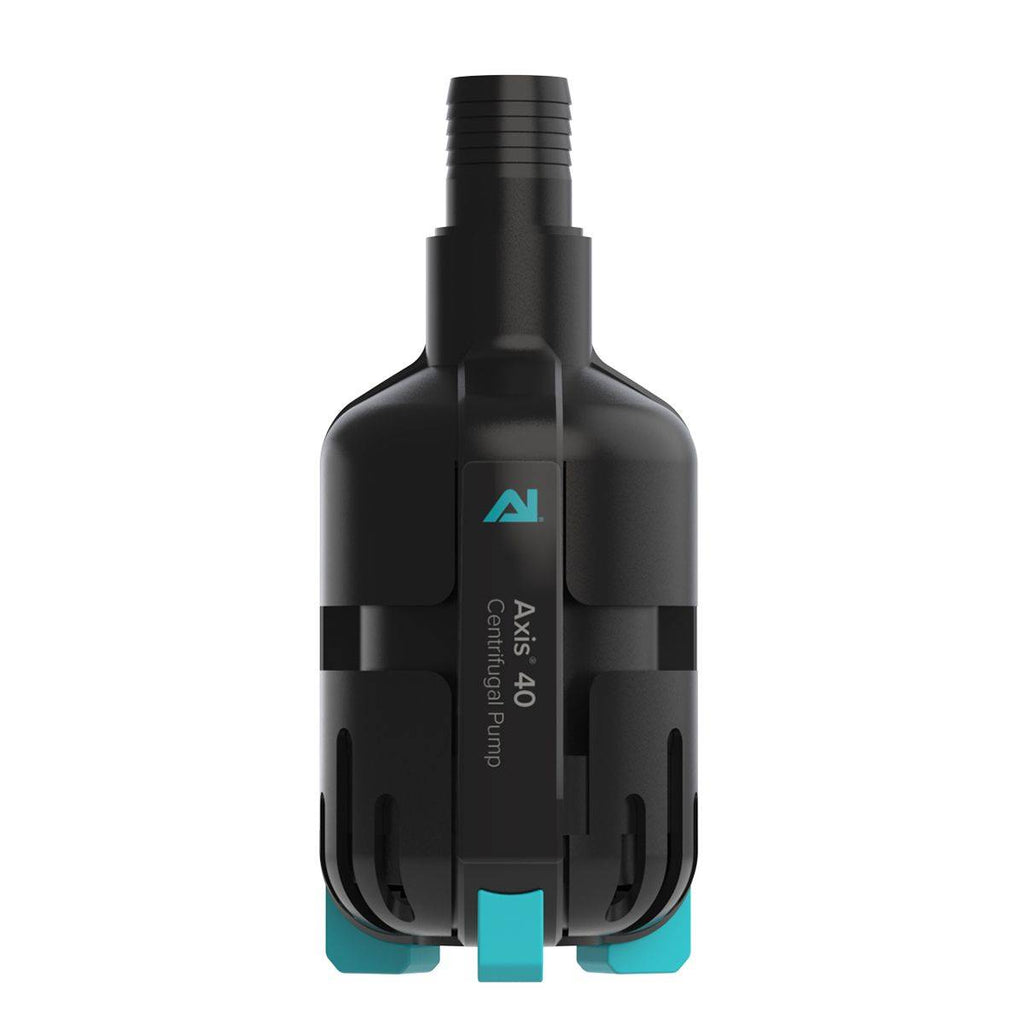

The AquaIllumination Axis 40 is a compact controllable centrifugal pump designed for return-pump applications on aquariums up to approximately 40 gallons. It delivers flow up to approximately 400 gallons per hour with a maximum head pressure of approximately 9 feet.
The Axis 40 uses a quiet DC motor and includes wireless smart-device control, output calibration and programmable operation. It can be configured through the Mobius app and is also compatible with the myAI app and Neptune Systems Apex through an optional MXM module.
Key Features
- Compact controllable centrifugal pump
- Recommended for aquariums up to approximately 40 gallons
- Flow rate up to approximately 400 GPH
- Maximum head pressure of approximately 9 feet
- Quiet DC motor operation
- Mobius-ready wireless control
- Also compatible with the myAI app
- Compatible with Neptune Systems Apex through an optional MXM module
- Schedule, Feed and Calibrate operating modes
- Includes output calibration and coordinated feed/maintenance control
Pump Modes
-
Schedule
Create a custom program with changing flow over time. -
Feed
Temporarily reduces flow to help prevent food from being cycled into the overflow. -
Calibrate
Sets minimum and maximum flow levels based on the aquarium installation.
Calibration and Back-Siphon Prevention
The Axis 40 can be calibrated to establish minimum and maximum operating flow levels for a specific aquarium. Once calibrated, the pump can continue running without producing flow instead of shutting off completely, helping prevent back-siphoning and reducing the chance of air entering the plumbing when normal operation resumes.
Control and Compatibility

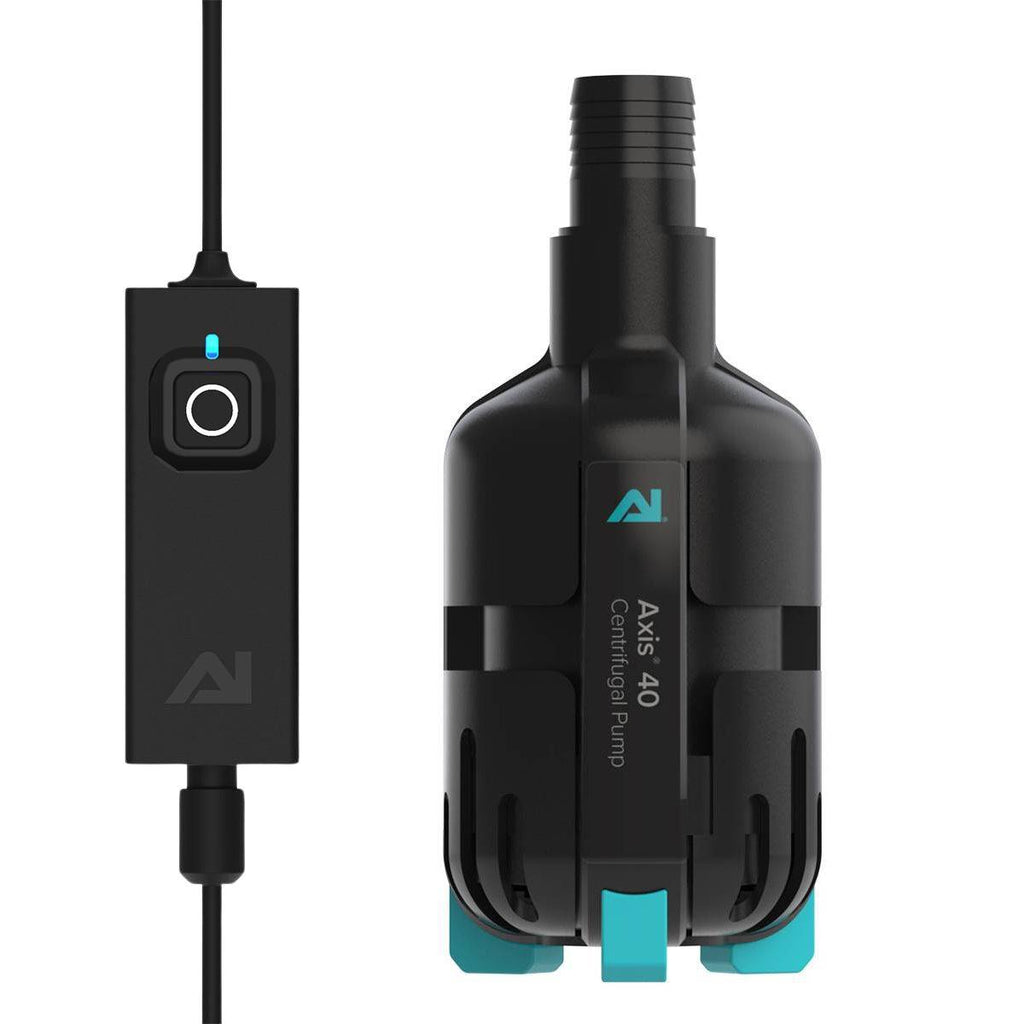

The Axis 40 includes integrated smart control and can be configured and programmed through the Mobius app on a compatible iOS or Android device. It is also compatible with the myAI app.
The Axis 40 can be controlled through Neptune Systems Apex and Apex Fusion using a separately purchased MXM module and compatible Apex controller.
Plumbing Compatibility
The Axis 40 includes barbed connection options for 0.625-inch / 16 mm and 0.75-inch / 20 mm tubing, allowing it to be used with different aquarium plumbing configurations.
Its compact form factor and adjustable flow also make the Axis 40 suitable for feeding media reactors and other auxiliary filtration equipment where sump space is limited and precise flow control is useful.
Specifications
- Recommended aquarium size: Up to approximately 40 gallons
- Flow rate: Approximately 400 GPH / 1,500 LPH
- Maximum head pressure: Approximately 9 ft. / 2.8 m

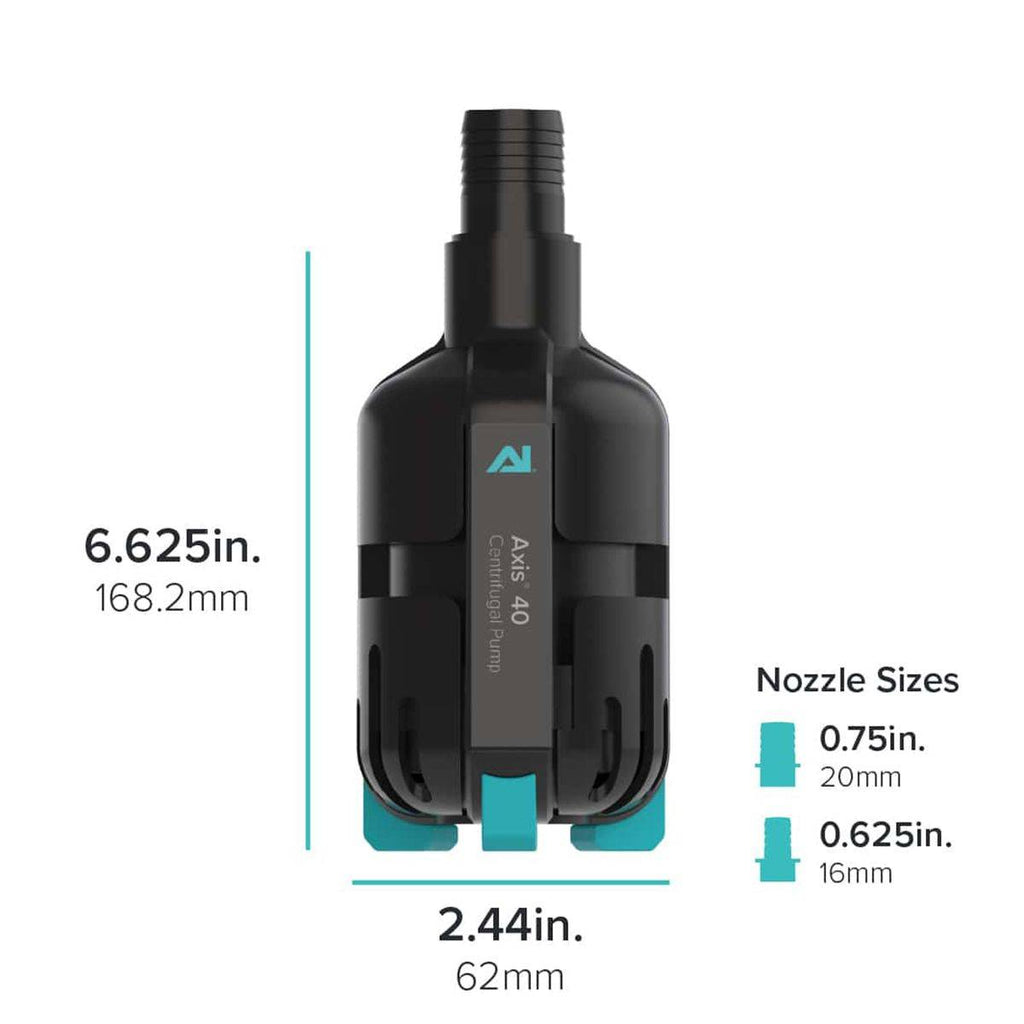

- Width: 2.44 in. / 62 mm
- Height: 6.625 in. / 168.2 mm
- Barbed connection sizes: 0.625 in. / 16 mm and 0.75 in. / 20 mm
- Power consumption: Variable, 20W max
- Input: 100-240VAC, 50-60Hz, 1A
- MXM Module Compatible: Yes
What's Included?
- AI Axis 40 Pump with Integrated Driver
- 0.625" (16mm) Barbed Output Nozzle
- 0.75" (20mm) Barbed Output Nozzle
- Power Adapter with Universal Plug Adapter Set
- Quick Start Guide
