Description

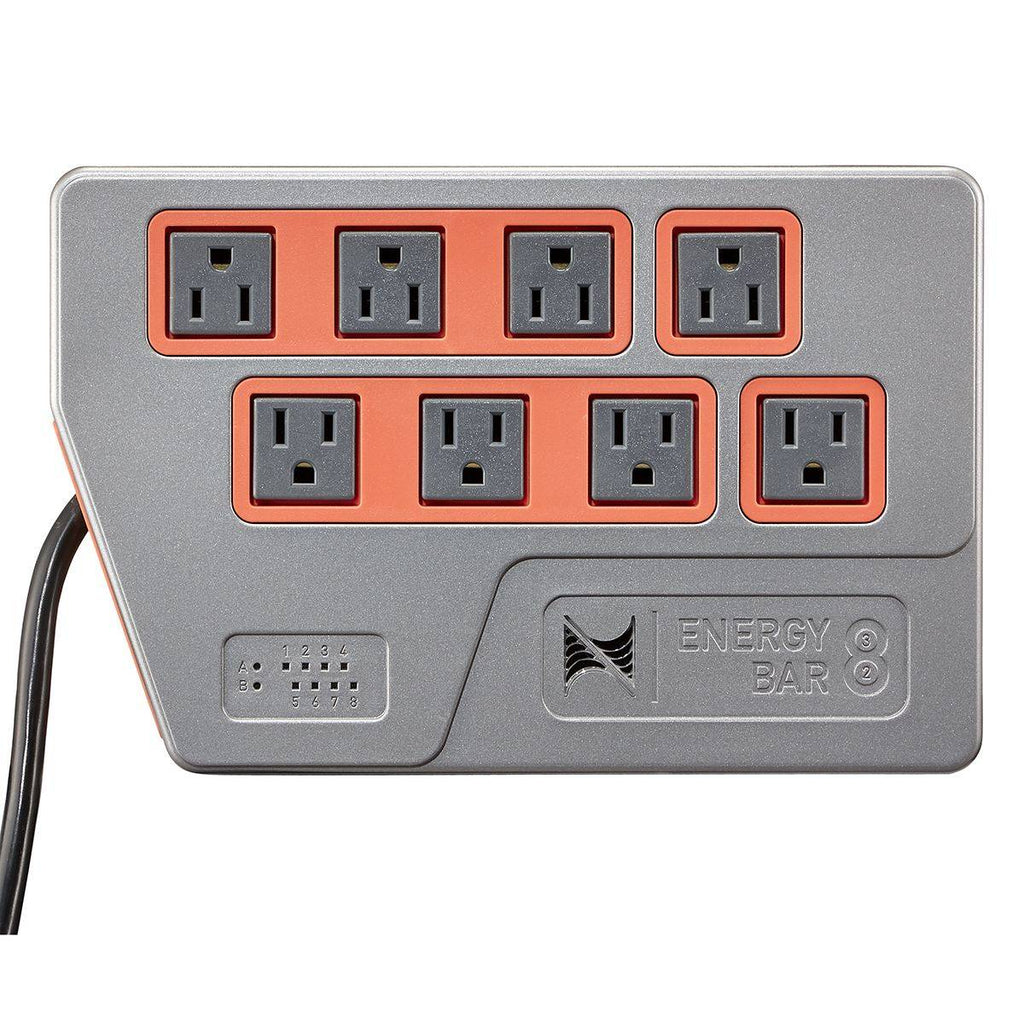

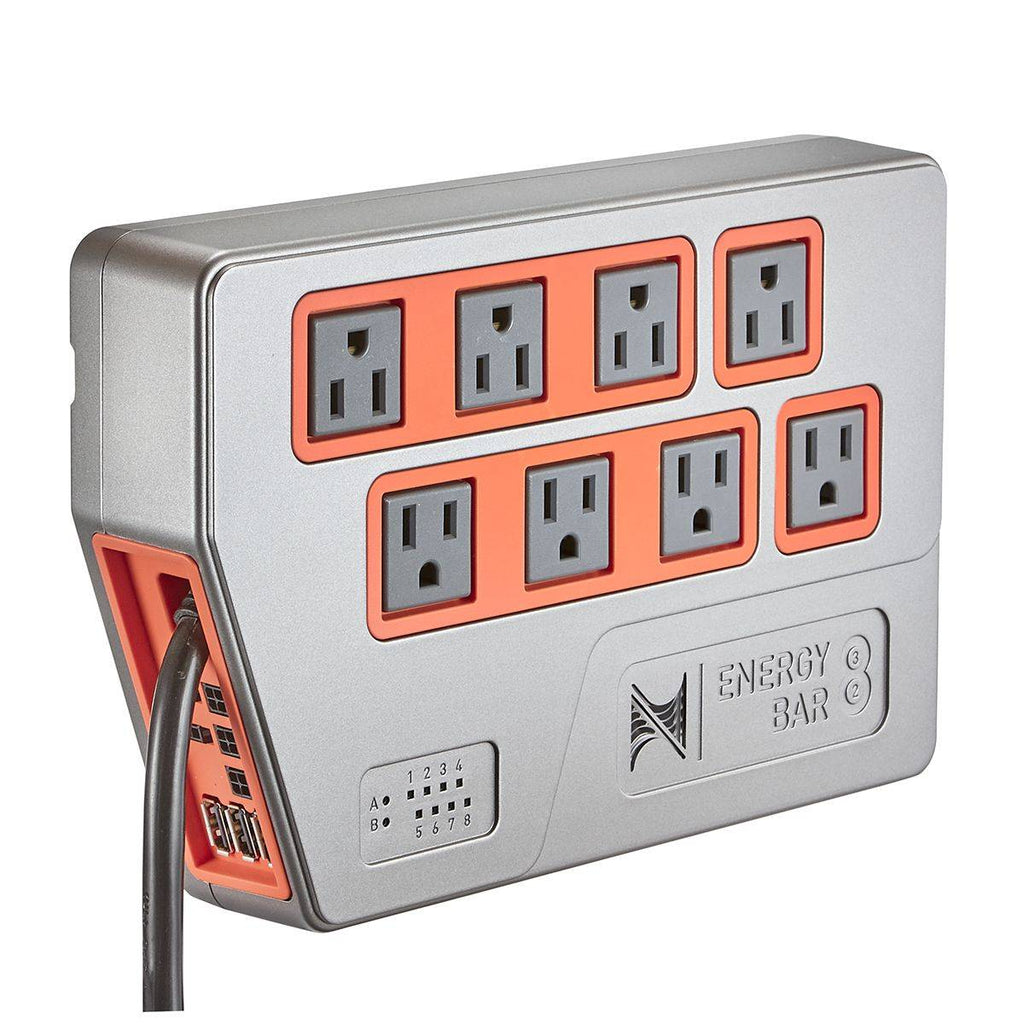

The Neptune Systems Energy Bar 832 is the main power and equipment control hub for compatible Apex systems. It provides eight independently controlled 120V AC outlets, individual outlet power monitoring, three 1LINK ports, and two DC24V accessory ports in a single unit.
Each AC outlet can monitor power consumption in amps or watts, allowing Apex Fusion to track equipment usage and send alerts when a connected device stops drawing power or begins operating outside its normal range.

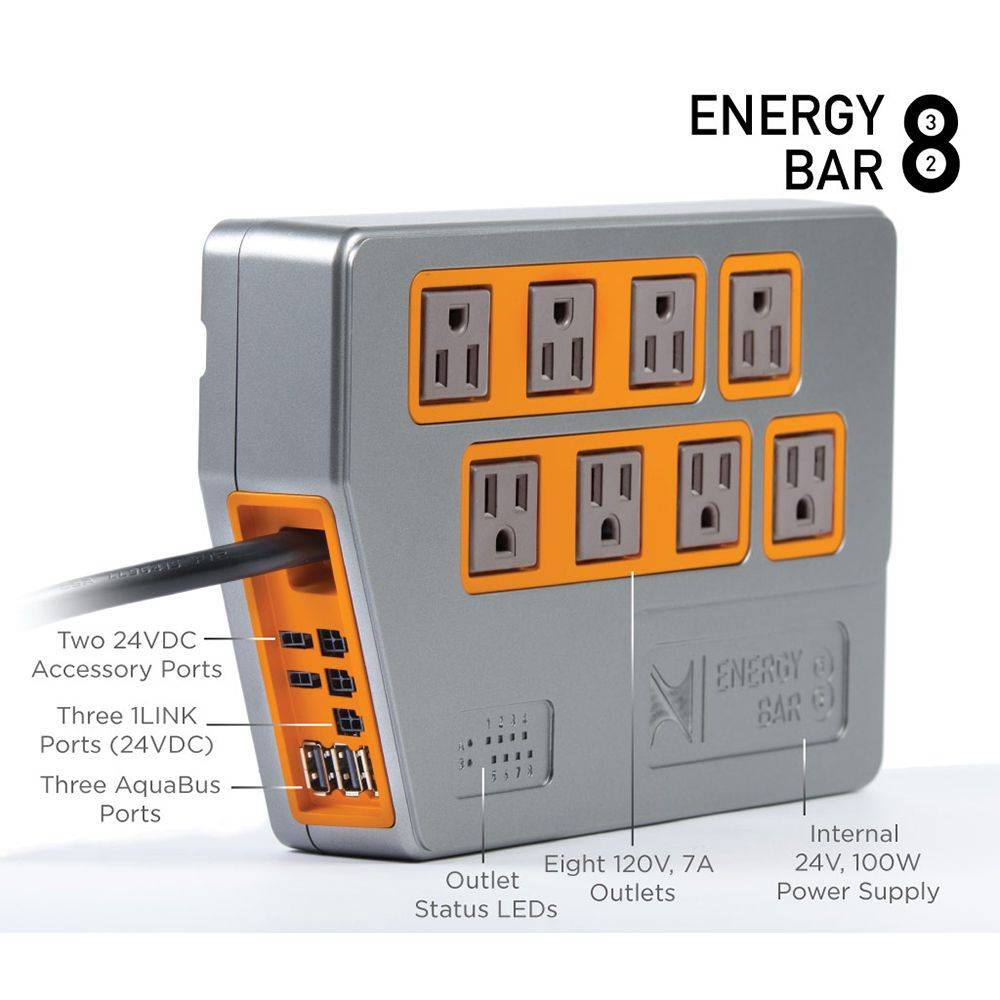

Key Features
- 8 independently controlled 120V AC outlets
- Individual power monitoring for every AC outlet
- LED status indicator for each outlet

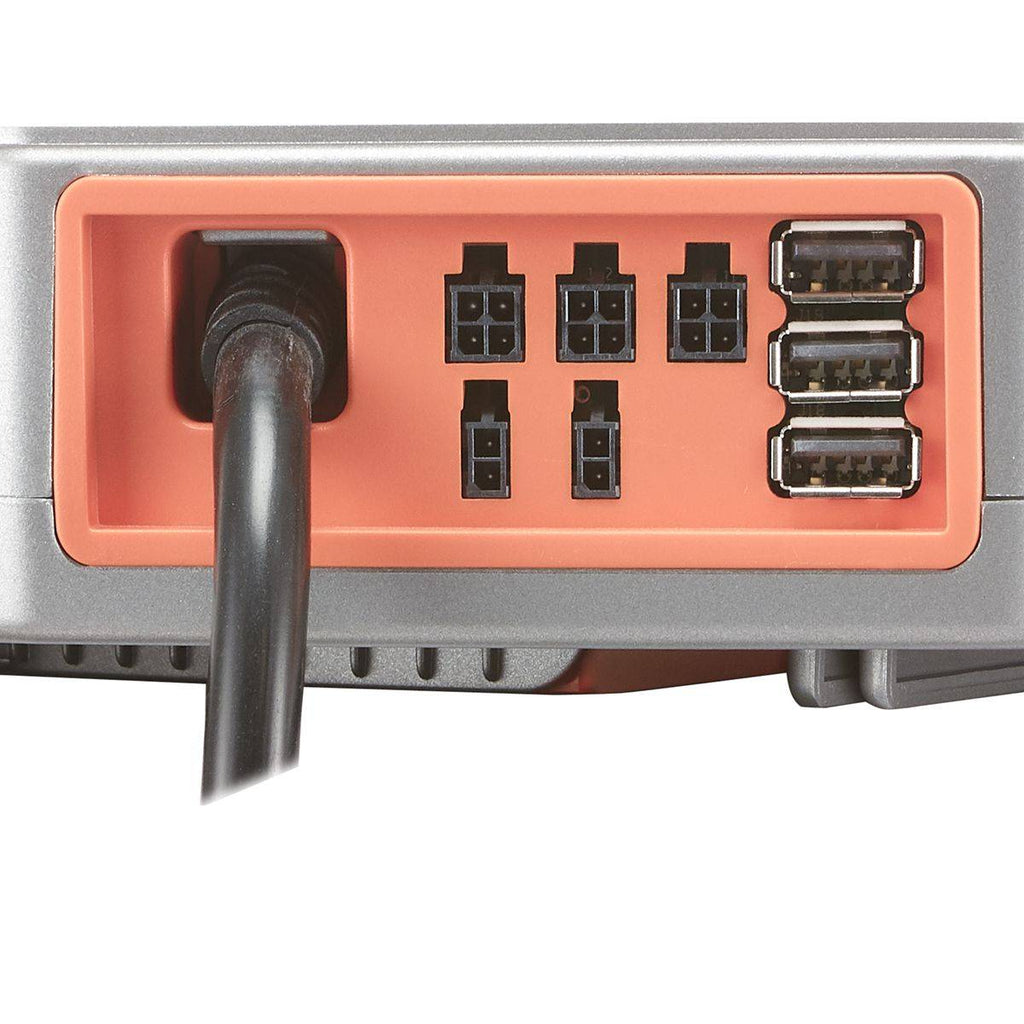

- 3 integrated 1LINK ports
- 2 DC24V accessory ports
- Internal 100W 24VDC power supply
- Connects to Apex through Aquabus
Specifications
- 120V AC Outlets: 8
- Maximum Amperage Per Outlet: 7A
- Maximum Total Amperage: 15A
- 1LINK Ports: 3
- DC24V Accessory Ports: 2
- Aquabus Ports: 3
- Internal Power Supply: 100W 24VDC
- Power Monitoring: Individual AC Outlet Monitoring
- Dimensions: 10" L x 6.5" H x 2.25" W
- Power Cord Length: 6 ft
-
Compatibility: A2 and A3 Apex Systems
What's Included?
- 1x Energy Bar 832
- 1x 3' Aquabus Cable
Note: The Energy Bar 832 requires a compatible Neptune Systems Apex controller and cannot operate as a standalone device. It is not compatible with A1/Apex Classic controller systems.
