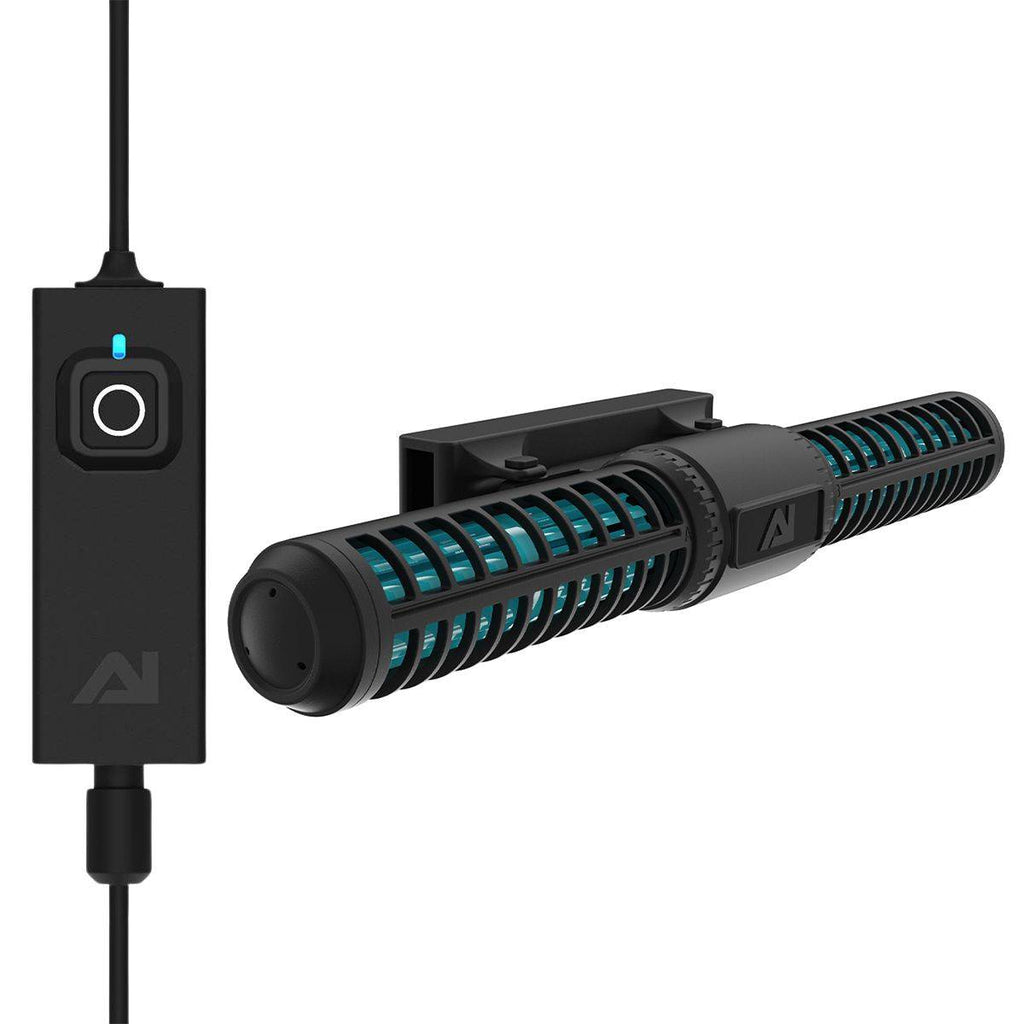

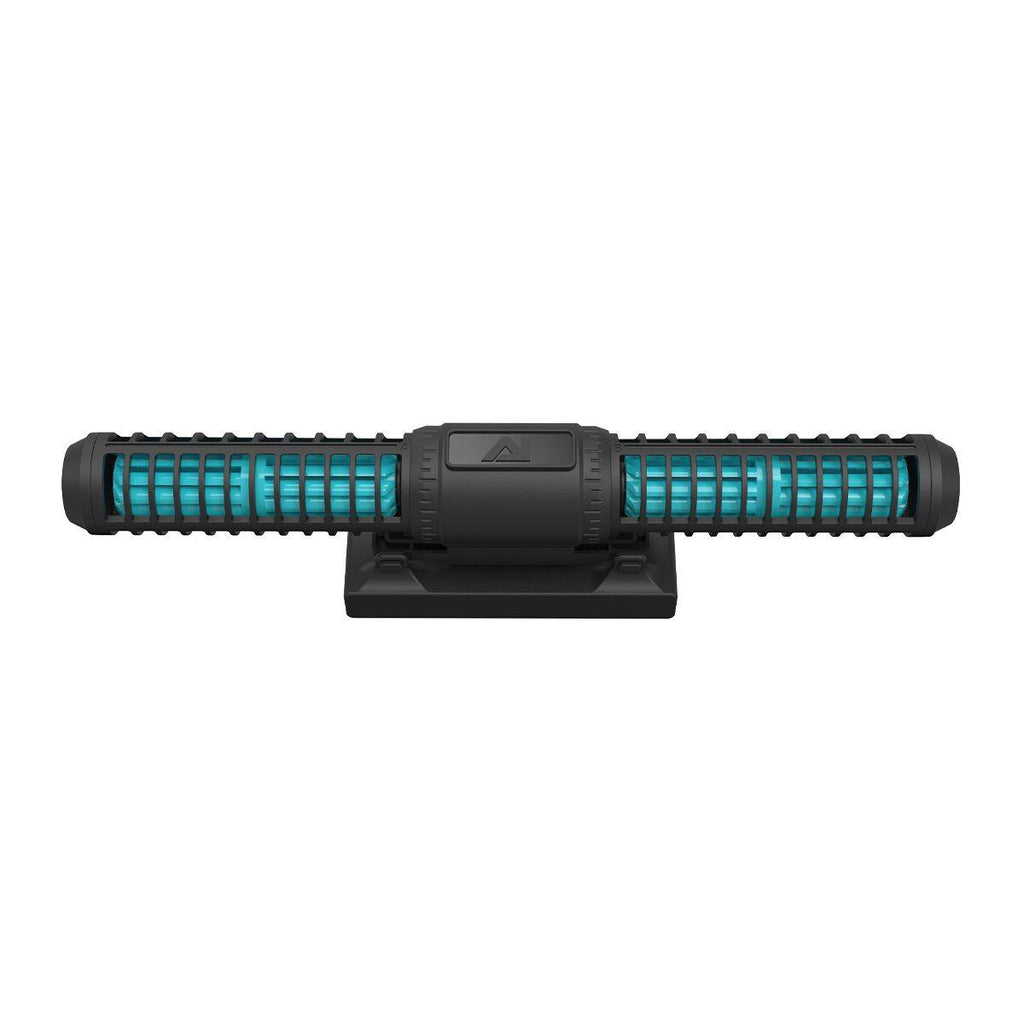

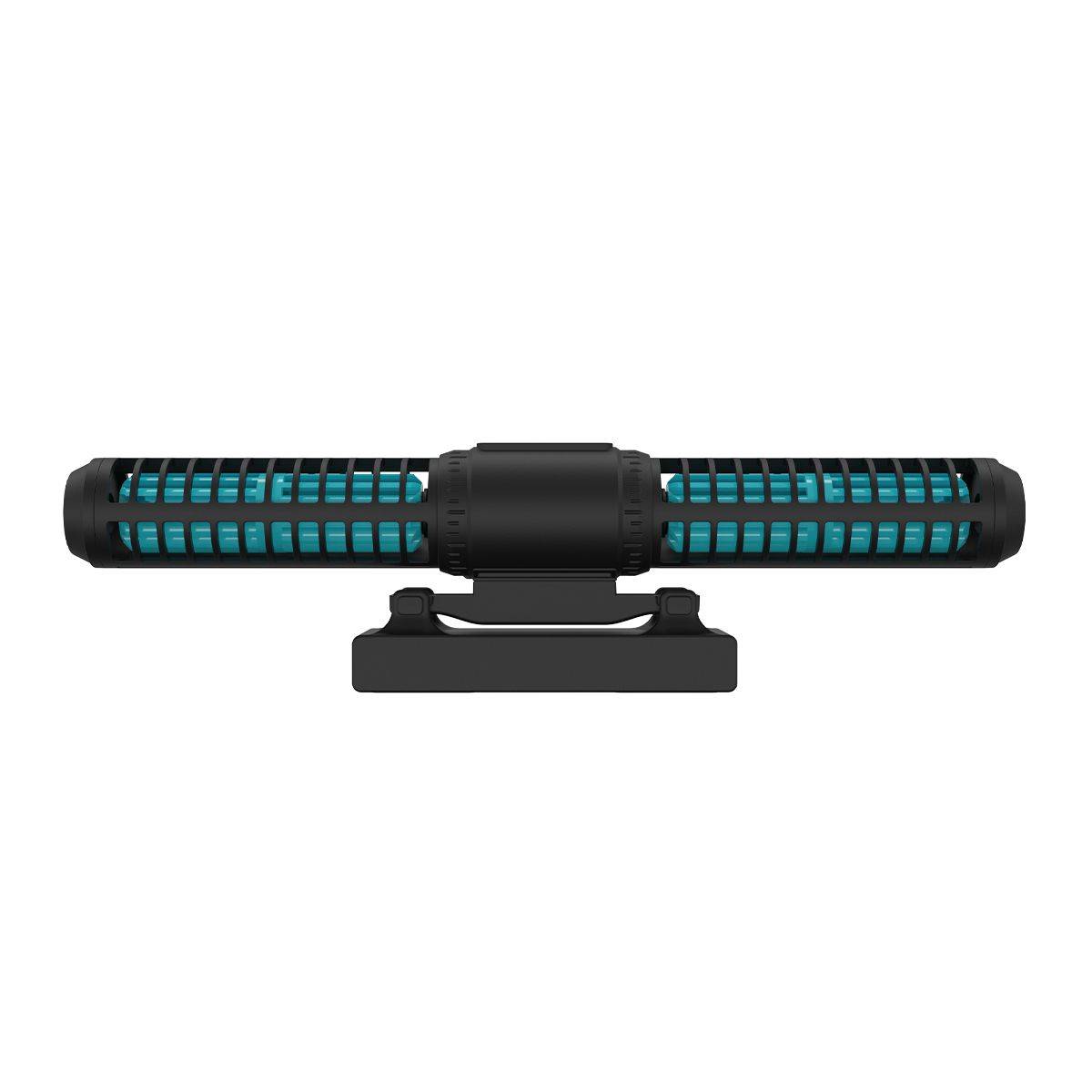

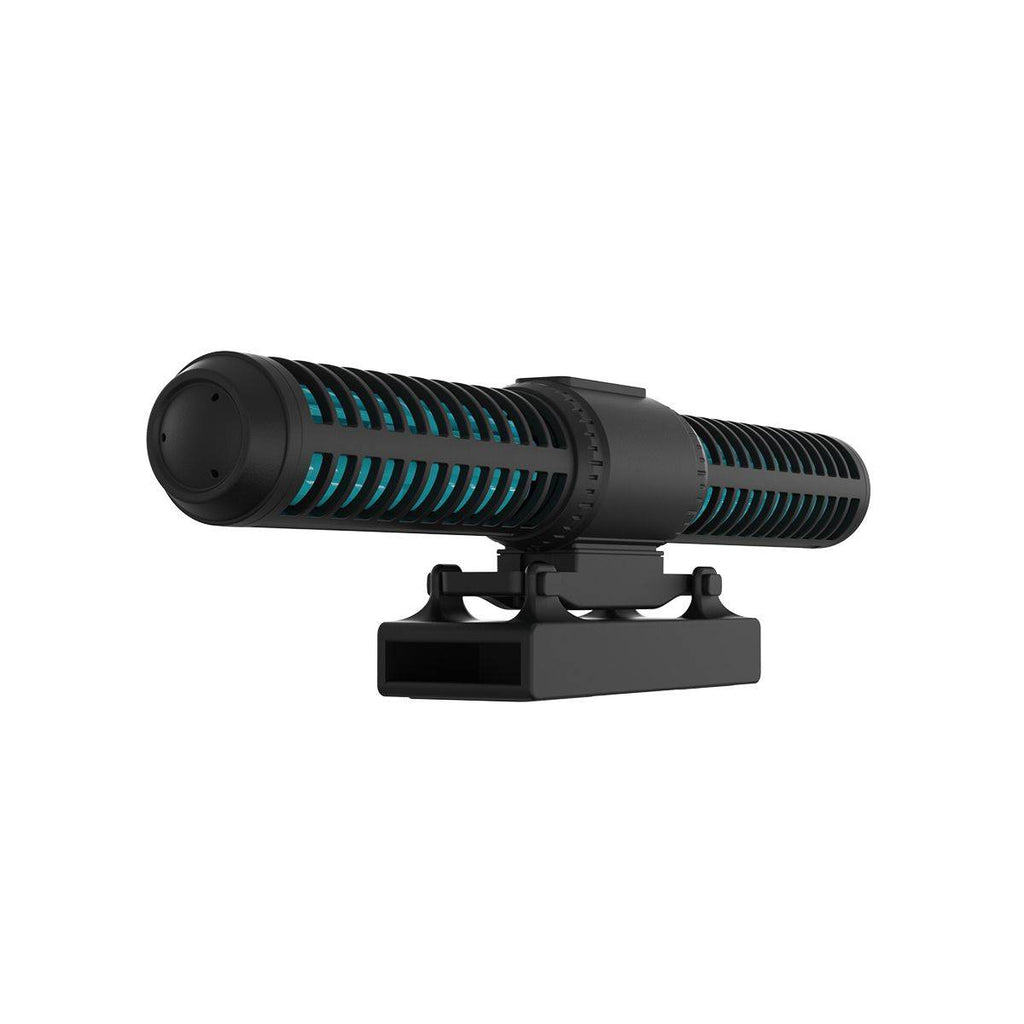

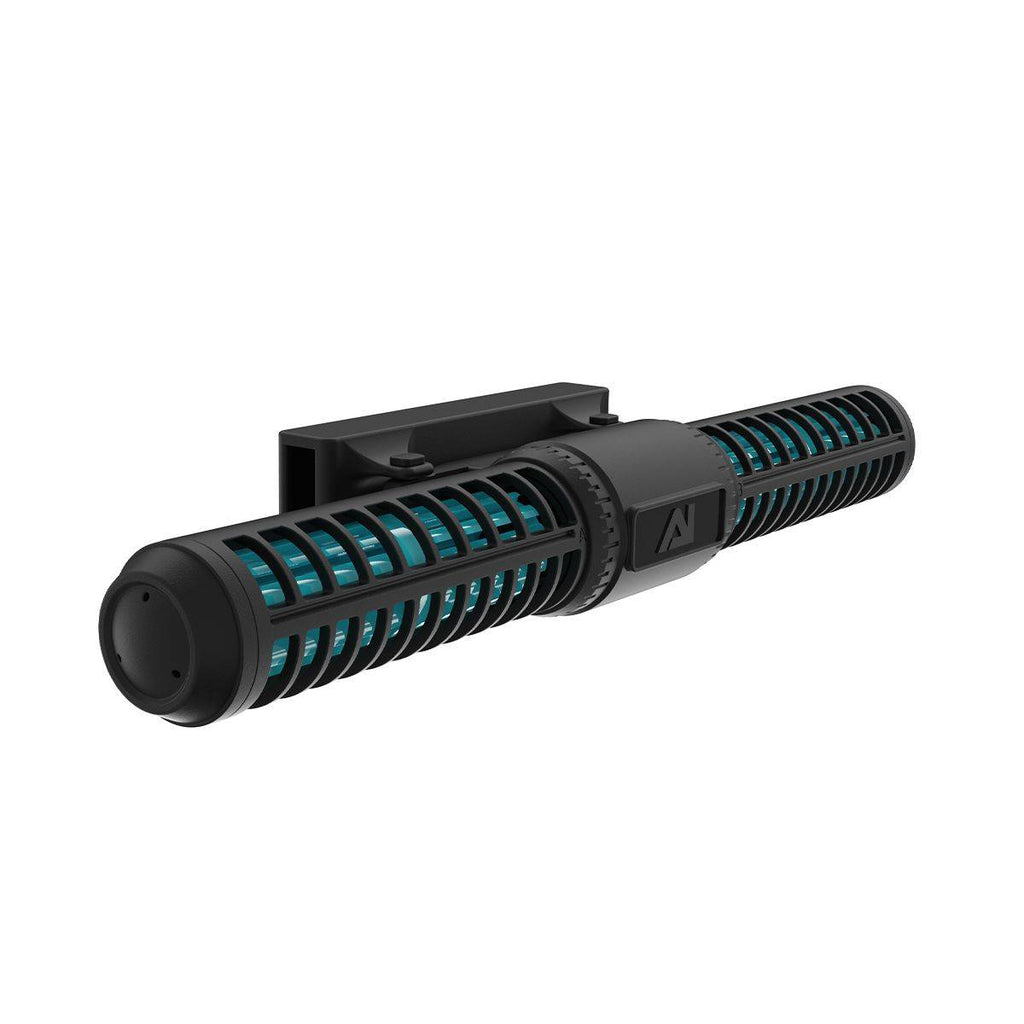

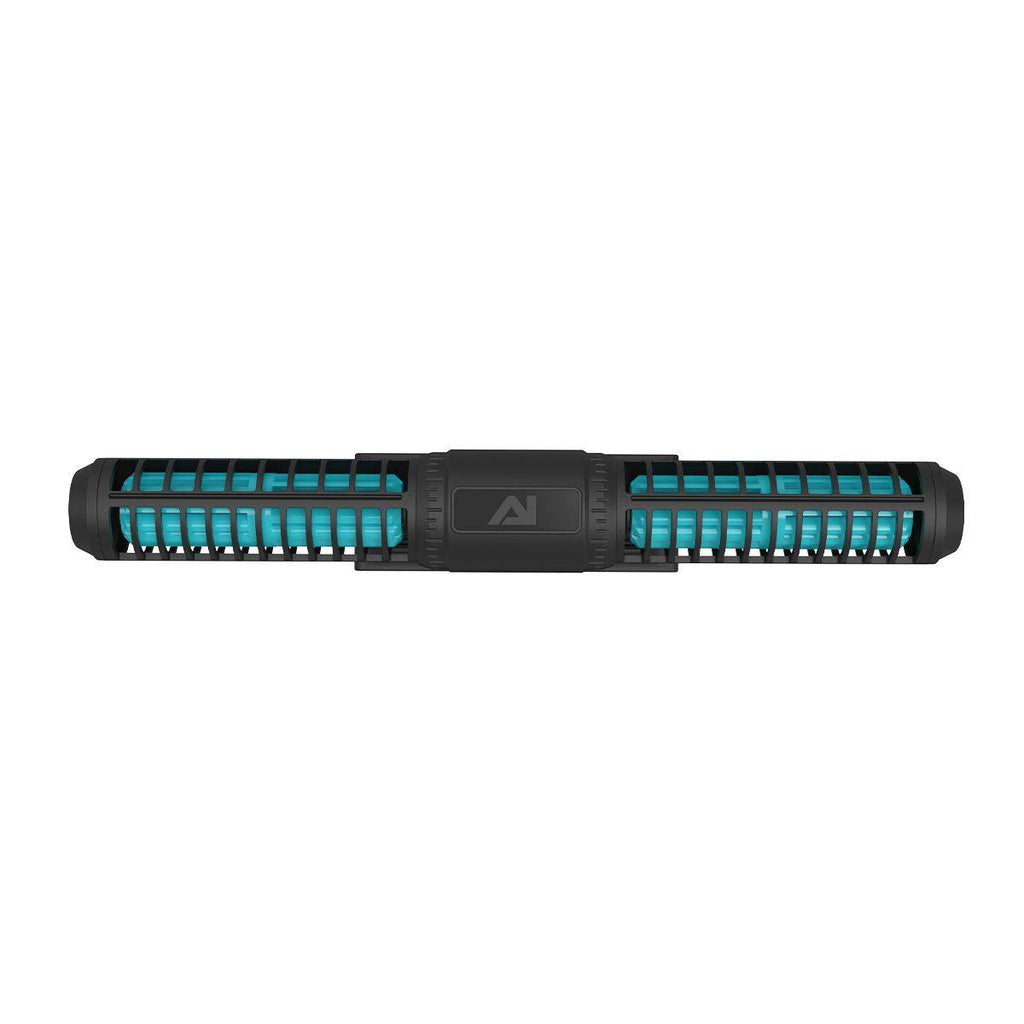

Orbit 4 Cross-Flow Pump

Description

The AquaIllumination Orbit 4 is a cross-flow circulation pump designed to create broad, horizontal water movement across larger aquariums. It is recommended for aquariums approximately 50 to 120+ gallons and supports forward and reverse operation for creating varied flow patterns throughout the tank.

The Orbit 4 includes integrated smart control and can be programmed through the Mobius app on compatible iOS and Android devices. It can also be integrated with Neptune Systems Apex through an optional MXM module.

Key Features

• Cross-flow pump designed for broad gyre-style aquarium circulation
• Recommended for aquariums approximately 50 to 120+ gallons
• Forward and reverse operation
• Constant Speed, Pulse, Random and Reverse pump modes
• Mobius-ready wireless control
• Also compatible with the myAI app
• Compatible with Neptune Systems Apex through an optional MXM module
• Can be paired with additional Orbit or Nero pumps to create varied flow patterns

Cross-Flow Circulation

The Orbit 4 produces a cross-flow current designed to move water across and around the aquarium rather than concentrating flow in a single area. This circulation pattern can help lift excess nutrients and detritus from the bottom of the aquarium so they can be removed by the filtration system.

Orbit pumps can also be combined with directional and random flow from AquaIllumination Nero pumps to create a mix of systematic, directional and variable water movement.

Pump Modes

• Constant Speed
  Provides a continuous stream of flow at the selected intensity.
• Pulse
  Alternates between uniform high and low flow levels.
• Random
  Varies pump output to simulate a high-energy reef environment.
• Reverse
  Reverses the direction of pump flow.

Forward and Reverse Operation

The Orbit 4 can operate in both forward and reverse directions. Reverse operation can be incorporated into custom flow programs to create additional turbulence and help move accumulated detritus.

When multiple Orbit pumps are used, they can be operated in opposing directions to create gyre-style or circular flow patterns throughout the aquarium.

Control and Compatibility

The Orbit 4 includes integrated smart control and can be configured and programmed through the Mobius app. It is also compatible with the myAI app.

The Orbit 4 can be controlled through Neptune Systems Apex and Apex Fusion using a separately purchased MXM module and compatible Apex controller.

Specifications

• Recommended aquarium size: Approximately 50-120+ gallons
• Width: 12.1 in. / 307.3 mm
• Height: 3.15 in. / 80 mm
• Depth: 1.69 in. / 42.9 mm
• Maximum glass thickness: 0.79 in. / 20 mm
• Power consumption: Variable, 45W max
• Input: 100-240VAC, 50-60Hz, 2A
• MXM Module Compatible: Yes

What's Included?

• AI Orbit 4 Pump with Integrated Driver
• Mounting Magnet
• Power Adapter with Universal Plug Adapter Set
• Quick Start Guide
