Specifications
| vendor | |
|---|---|
| SKU | |
| manufacturers part number | |
| UPC | |
| Weight | 1.0 lb |
| Product Length | |
| Product Width | |
| Product Height |
Description

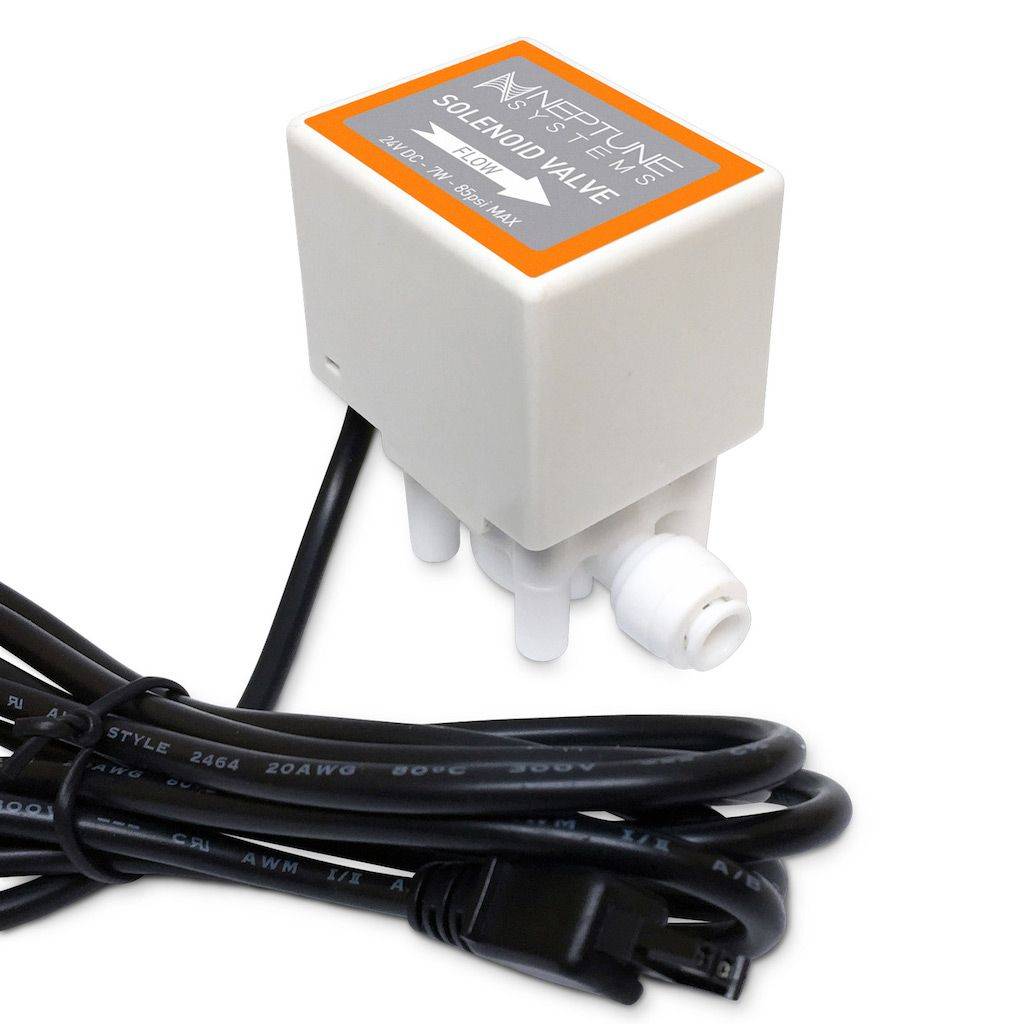

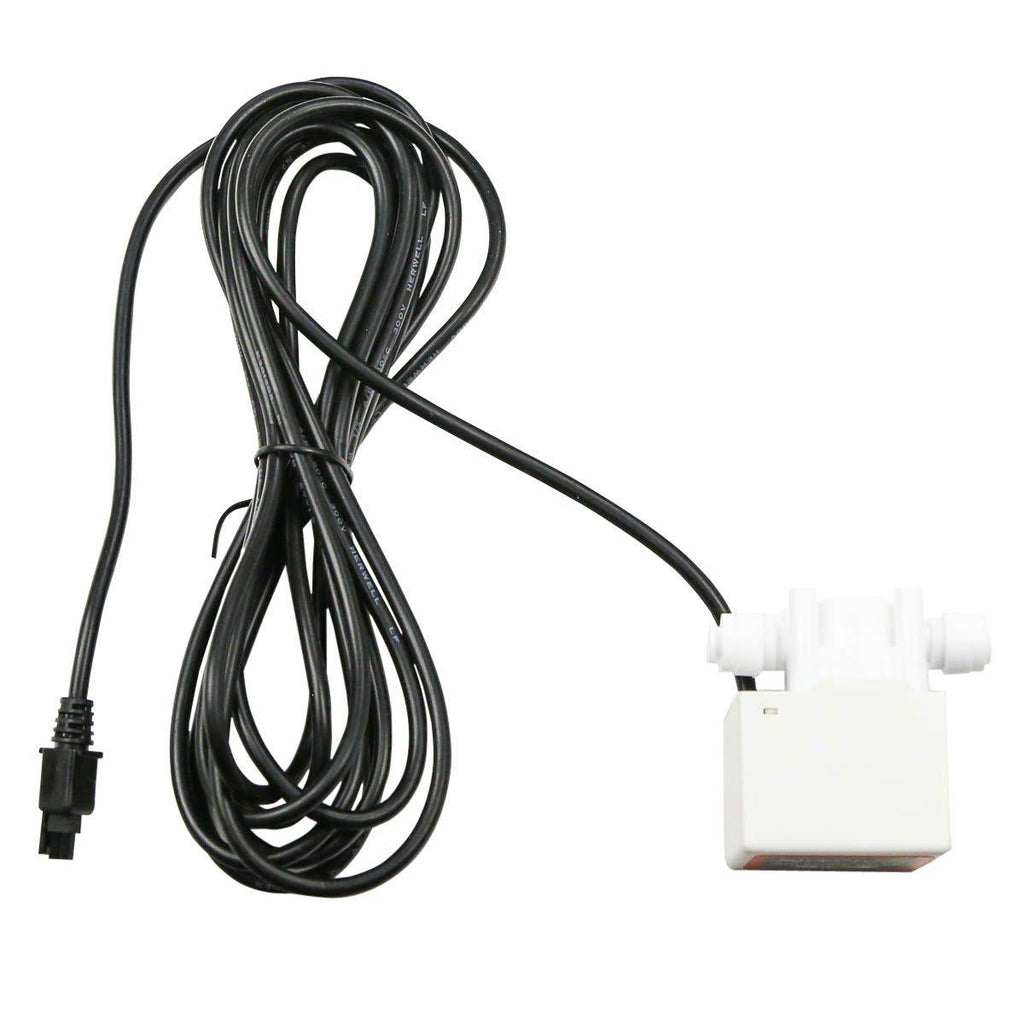

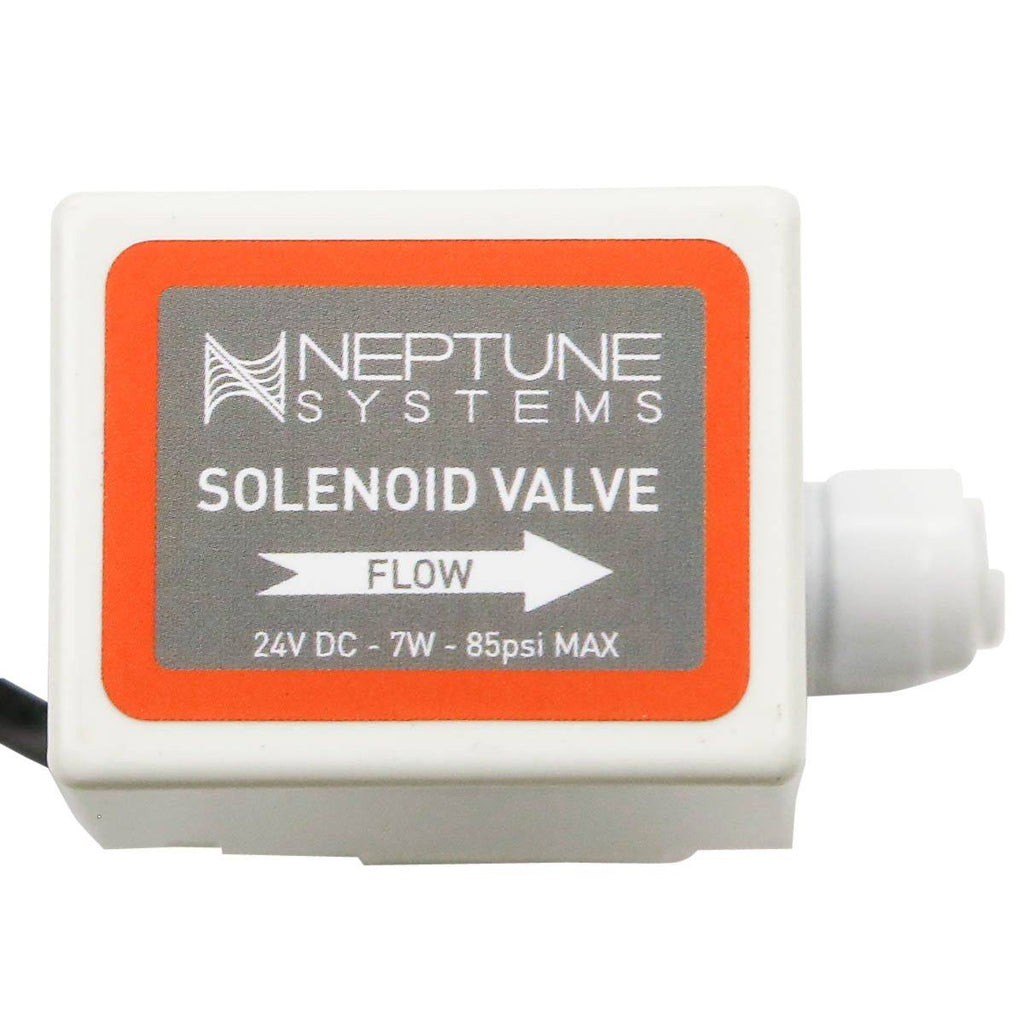

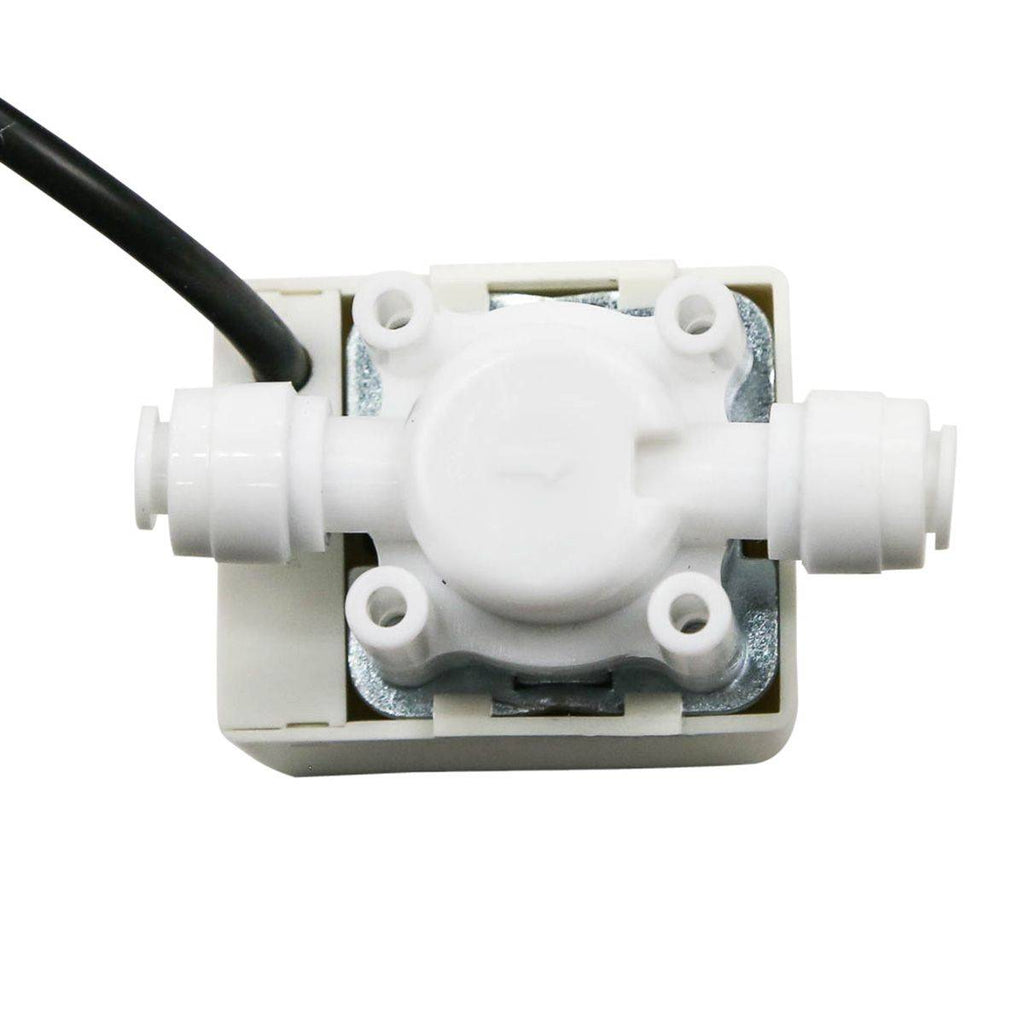

The Neptune Systems SV-1 Solenoid Valve provides Apex-controlled on/off flow for water, air, CO2, and other gases using standard 1/4" tubing. Its normally-closed design keeps flow shut off when the valve is not powered, making it useful for applications like RO/DI safety shutoffs and calcium reactor CO2 control.
The SV-1 connects directly to a DC24 accessory port on an FMM, 1LINK Module, or Energy Bar 832. It can also be used with a standalone 24VDC power supply when a powered DC24 port is not available.
Key Features
- Normally-closed 24VDC solenoid valve
- Designed for standard 1/4" tubing
- Push-fit inlet and outlet connections
- Useful for RO/DI water, CO2, air, and other gas applications
- Connects directly to DC24 accessory ports
- Can be used with an optional standalone 24VDC power supply
Specifications
- Valve Type: Normally Closed
- Power: 24VDC
- Tubing Size: 1/4"
- Connection Type: Push-Fit
- Maximum Pressure: 85 PSI
- Dimensions: 2.4" x 2.5"
- Cable Length: 13 ft
- Power Connection: DC24 Accessory Port
What's Included?
- 1x SV-1 Solenoid Valve
Note: The SV-1 is best suited for RO/DI water, air, CO2, and other gas applications. It is not recommended for direct saltwater flow because the internal magnetic piston is exposed to the fluid path.
