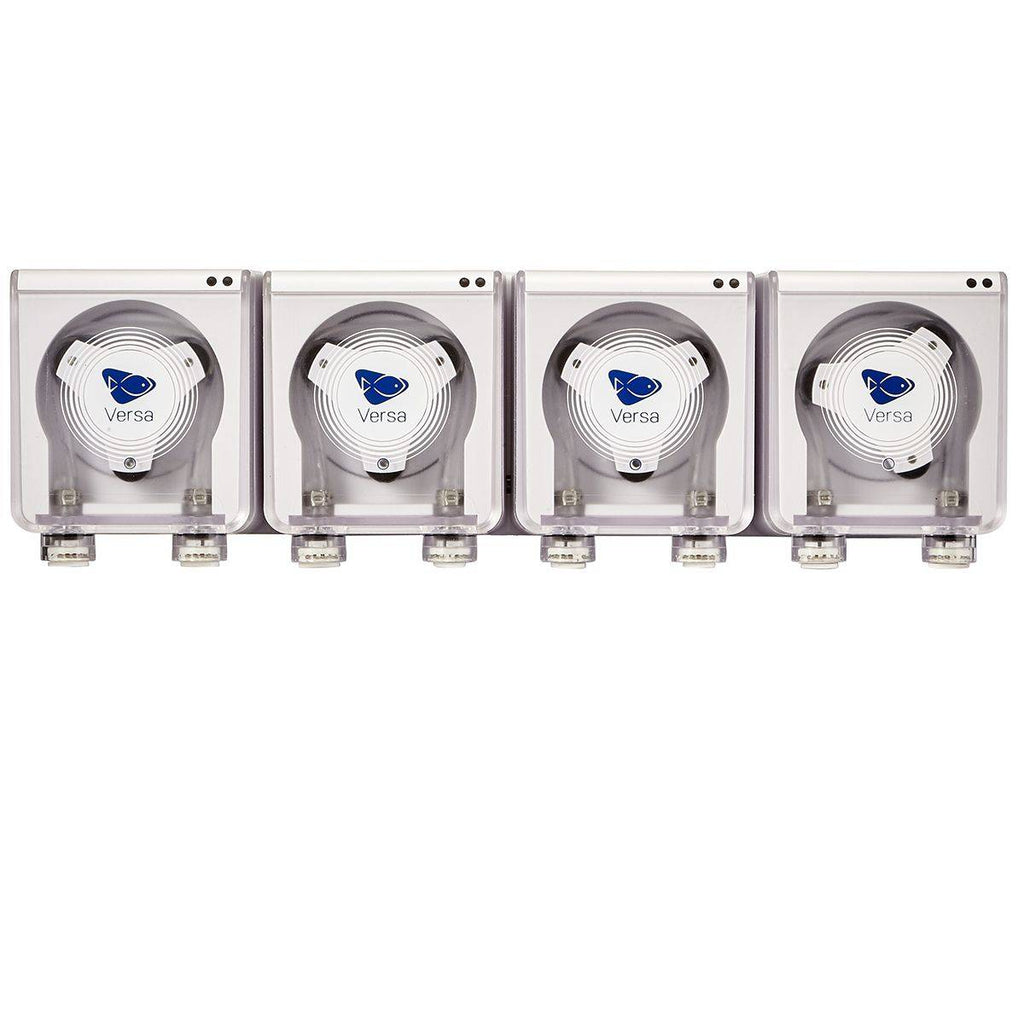

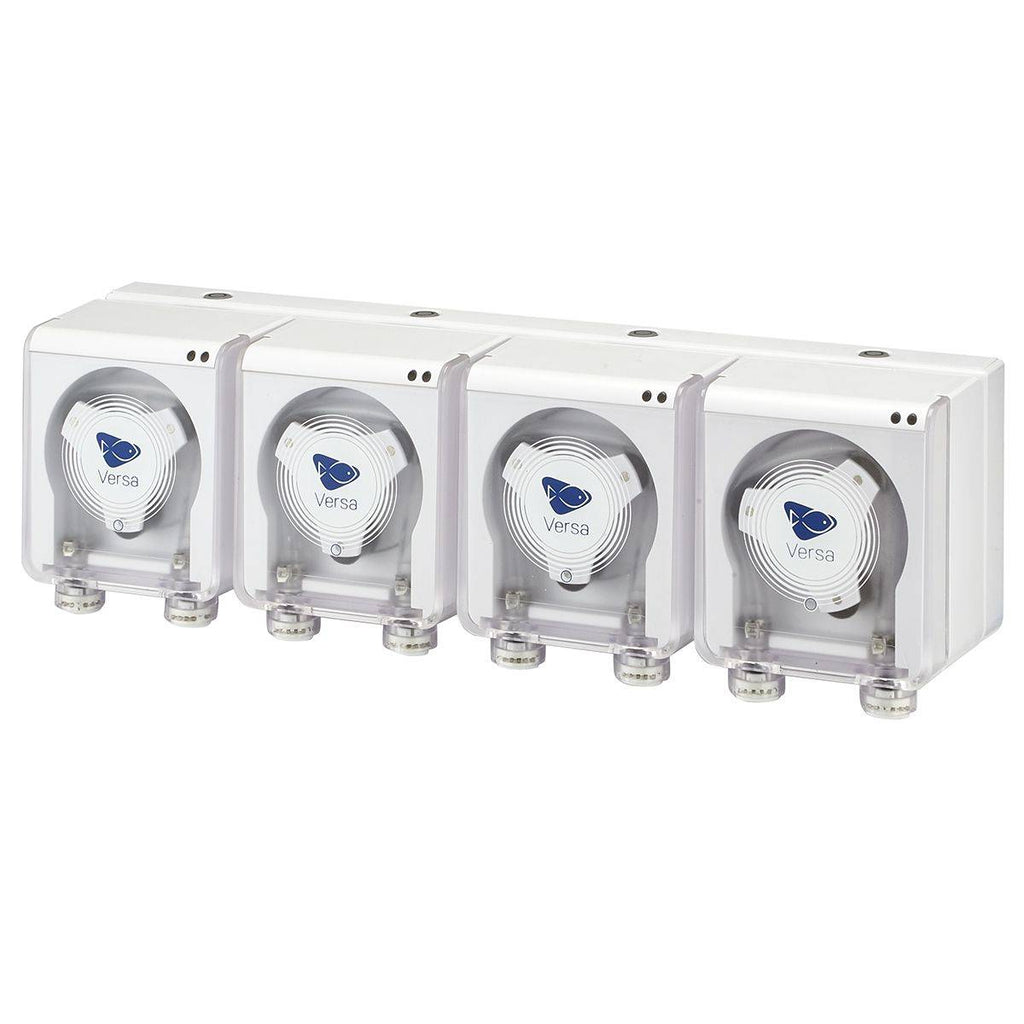

Versa Pump 4 Pack with Base Station - UK Cable

Description

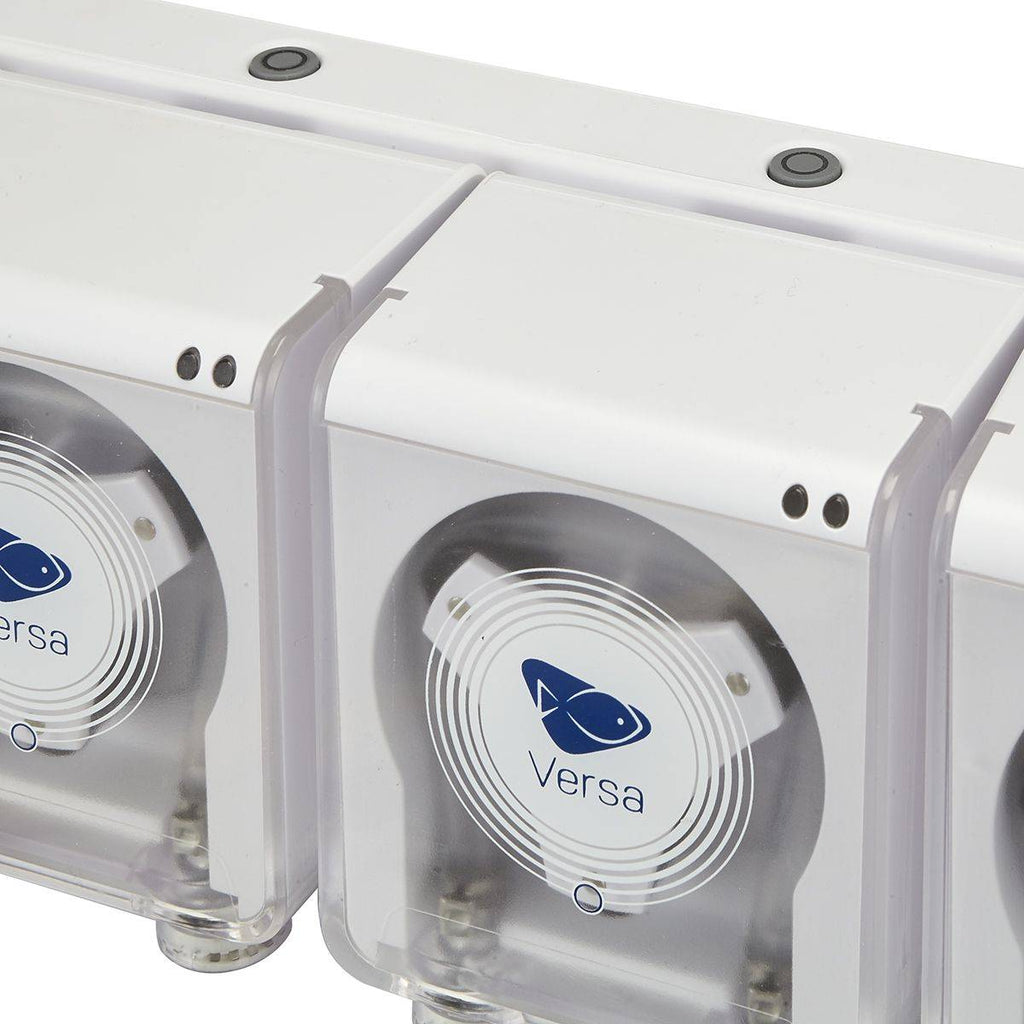

The EcoTech Marine Versa Four-Pack includes four single-head peristaltic pumps and a Versa Base Station designed for aquarium dosing, automatic top-off, water changes and feeding applications. Each pump provides dosing accuracy of 2% or less and supports delivery rates ranging from 6 microliters per minute to 300 milliliters per minute.

The Versa combines commercial-grade ABS construction, precision gearing and laboratory-grade tubing for precise operation and long-term continuous use. The included Base Station provides a consolidated power supply and tactile indexing buttons for all four pumps. Programming and control are handled through the Mobius app on a compatible iOS or Android device.

Key Features

• Includes four single-head peristaltic pumps
• Includes a Versa Base Station
• Suitable for dosing, automatic top-off, water changes and feeding
• Dosing accuracy of 2% or less
• Minimum dosing rate of 6μL per minute
• Maximum continuous rate of 200mL per minute
• Maximum volumetric rate of 300mL per minute
• Mobius-ready wireless control
• Auto, Continuous and Manual operating modes
• Supports up to 30 individual dosing events per pump within a 24-hour period
• Catch-Up feature can correct dosing differences following an interruption
• Commercial-grade ABS construction
• Precision planetary gearing
• Laboratory-grade pump tubing
• Designed for long-term continuous-use applications
• Base Station provides a consolidated power supply and tactile indexing buttons

Operating Modes

• Auto Mode
  Schedules dosing according to the selected additive or solution and standard dosing practices. The required dosing volume must be established through aquarium testing and adjustment.
• Continuous Mode
  Runs the pump continuously at a selected volume-per-minute rate while power is supplied. External equipment such as a controller, timer or float switch is required to regulate operation in this mode.
• Manual Mode
  Allows dosing programs to be created using specified volumes, durations, delivery rates or time periods. Up to 30 separate dosing events can be programmed per pump during a 24-hour period.

Programming and Safeguards

The Versa is programmed through the Mobius app. Users can create an aquarium profile, add the pumps and configure an operating program from a compatible mobile device.

The Catch-Up feature allows each Versa to correct a dosing difference when the pump is shut down or interrupted during its daily program. Additional safeguards are included to help reduce potential dosing issues.

Construction and Installation

The Versa uses durable ABS plastics, precision gearing and laboratory-grade tubing to support accurate dosing and extended operation between servicing.

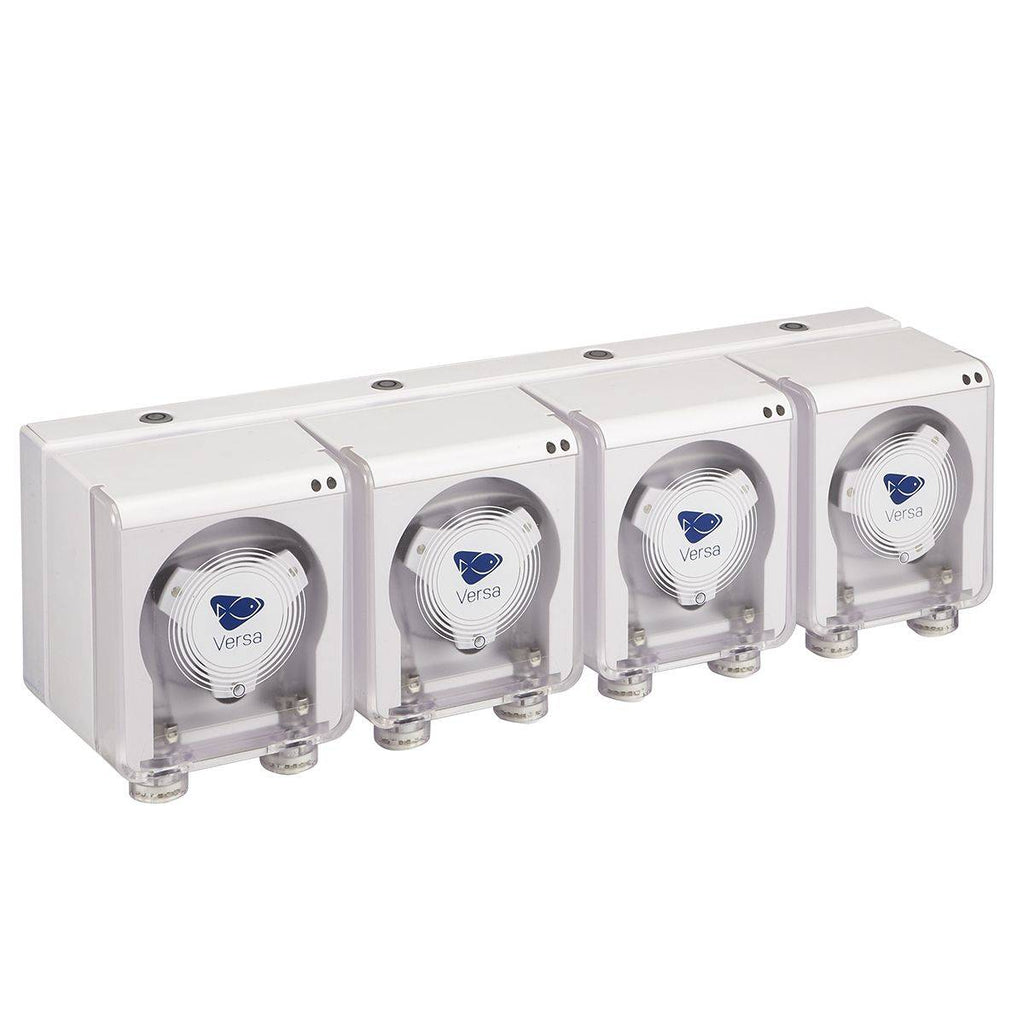

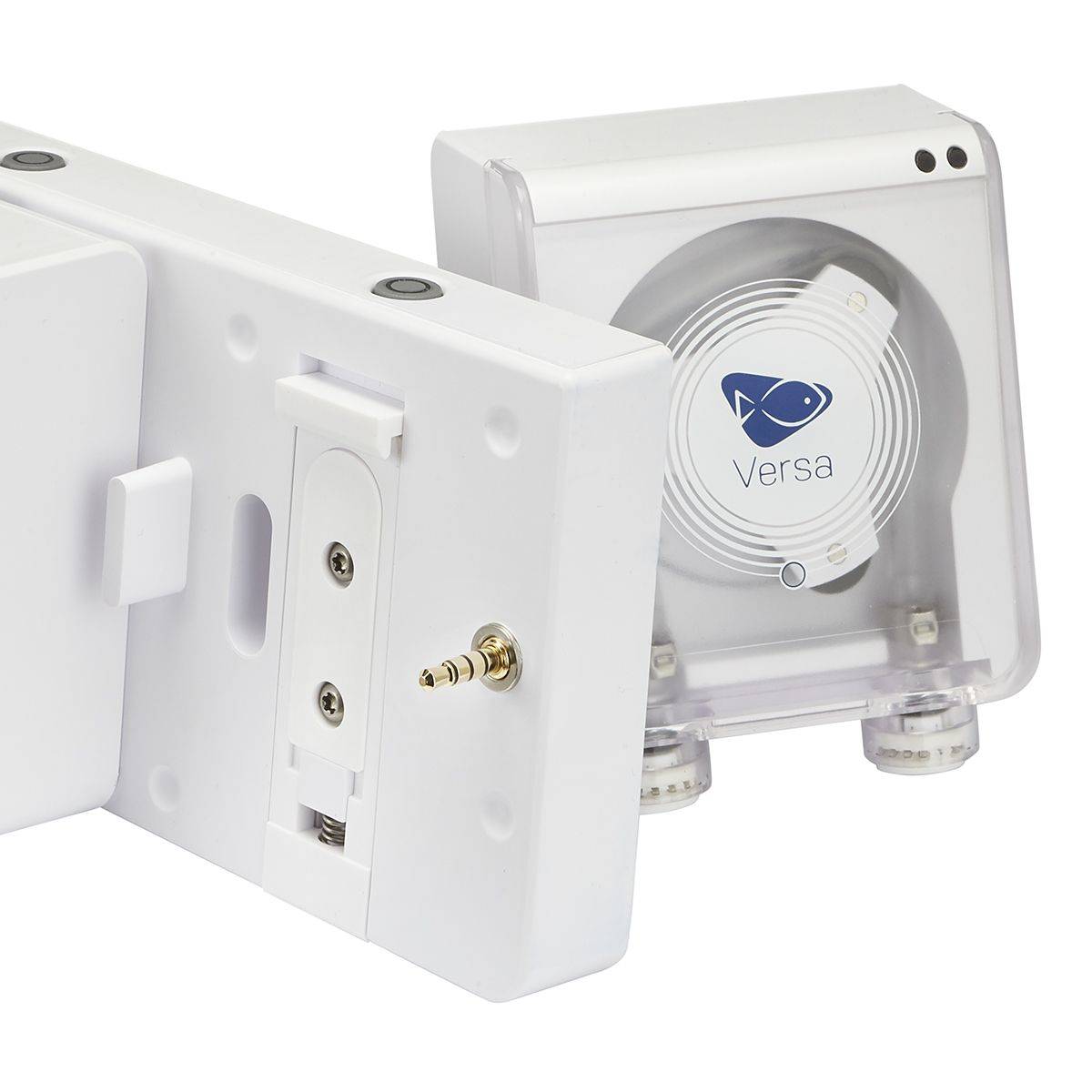

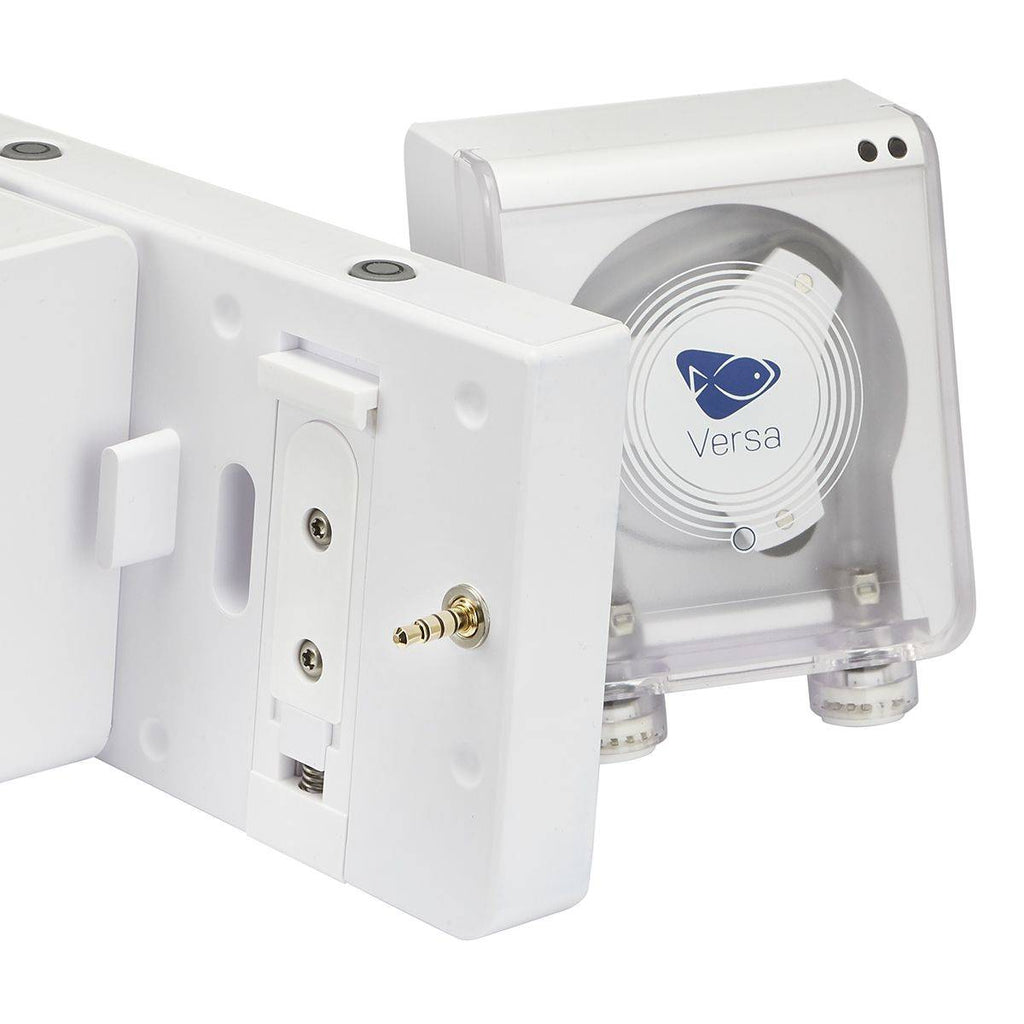

The four included Versa pumps dock to the included Base Station. The Base Station provides a consolidated power supply and tactile indexing buttons for controlling the installed pumps.

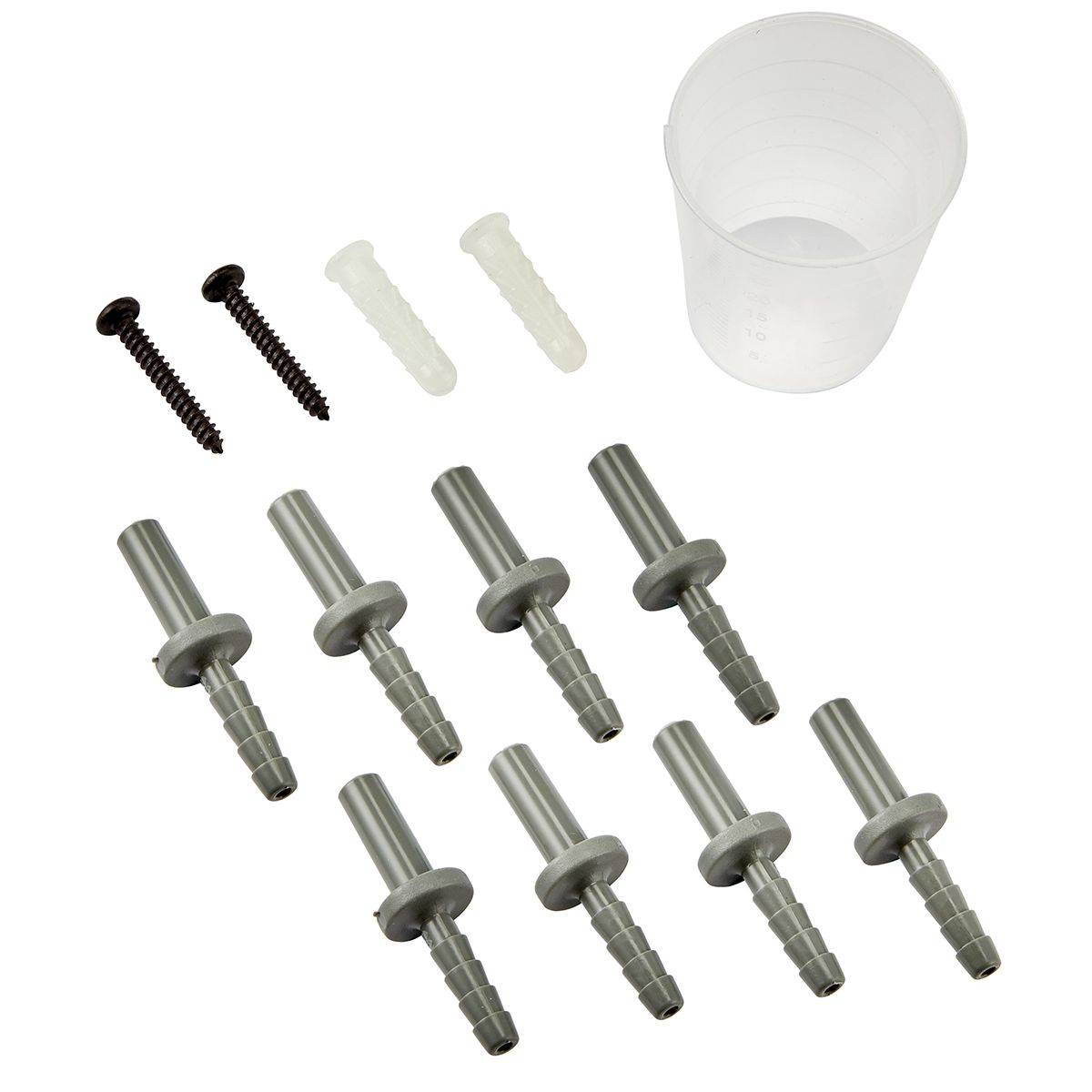

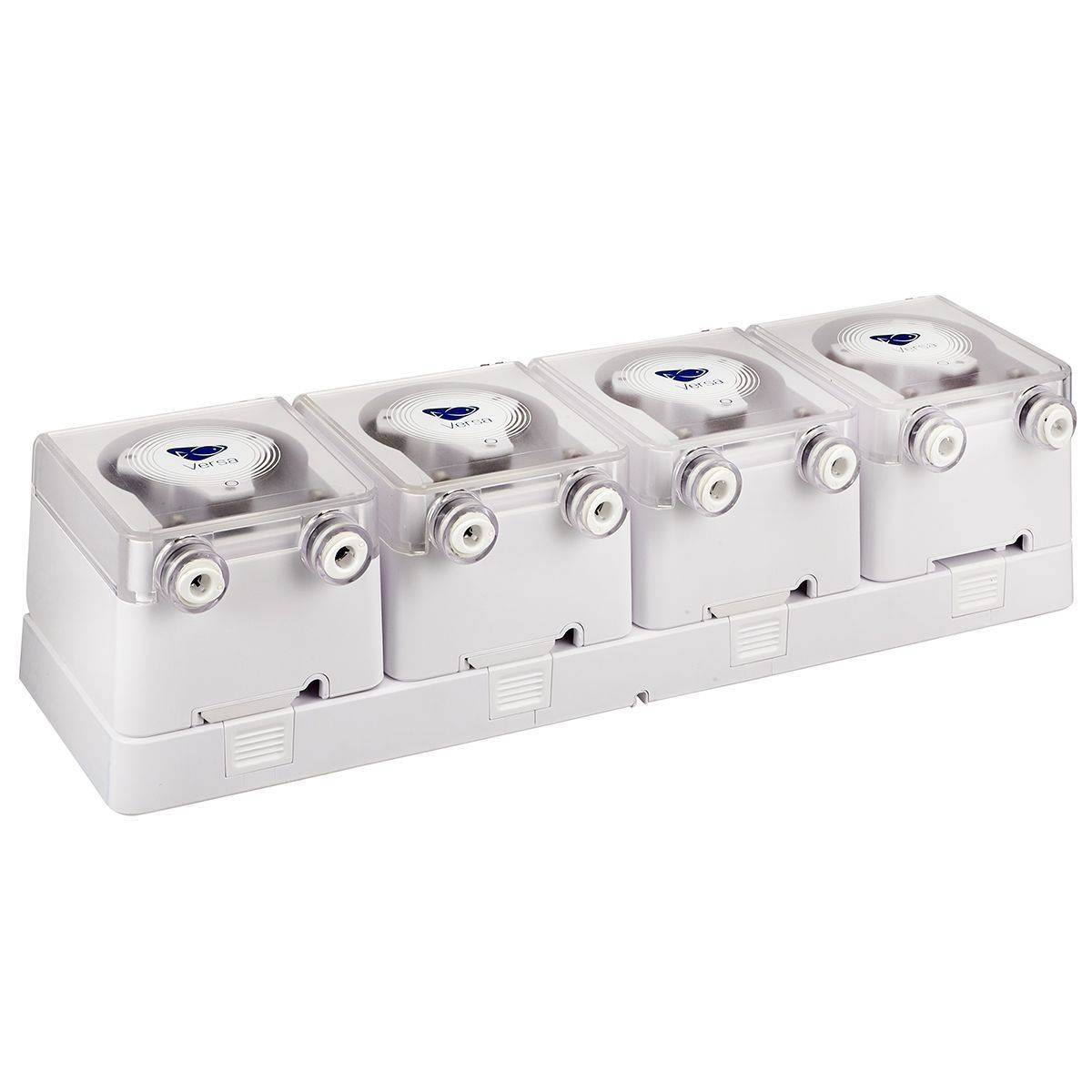

Female push-to-connect and barbed adapters are included to support different tubing connections. Optional polyurethane tubing, push-to-connect fittings and elbow connectors are available separately.

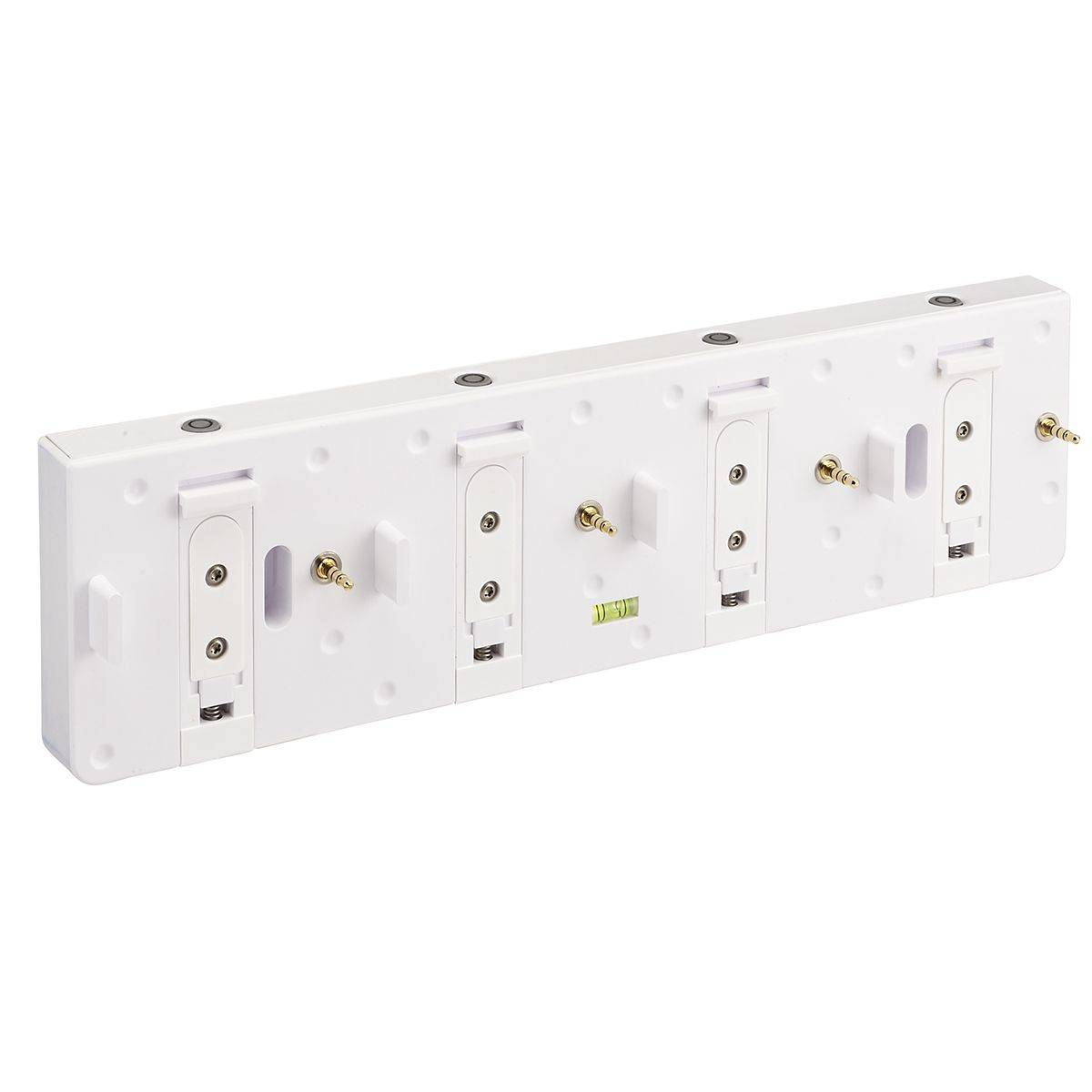

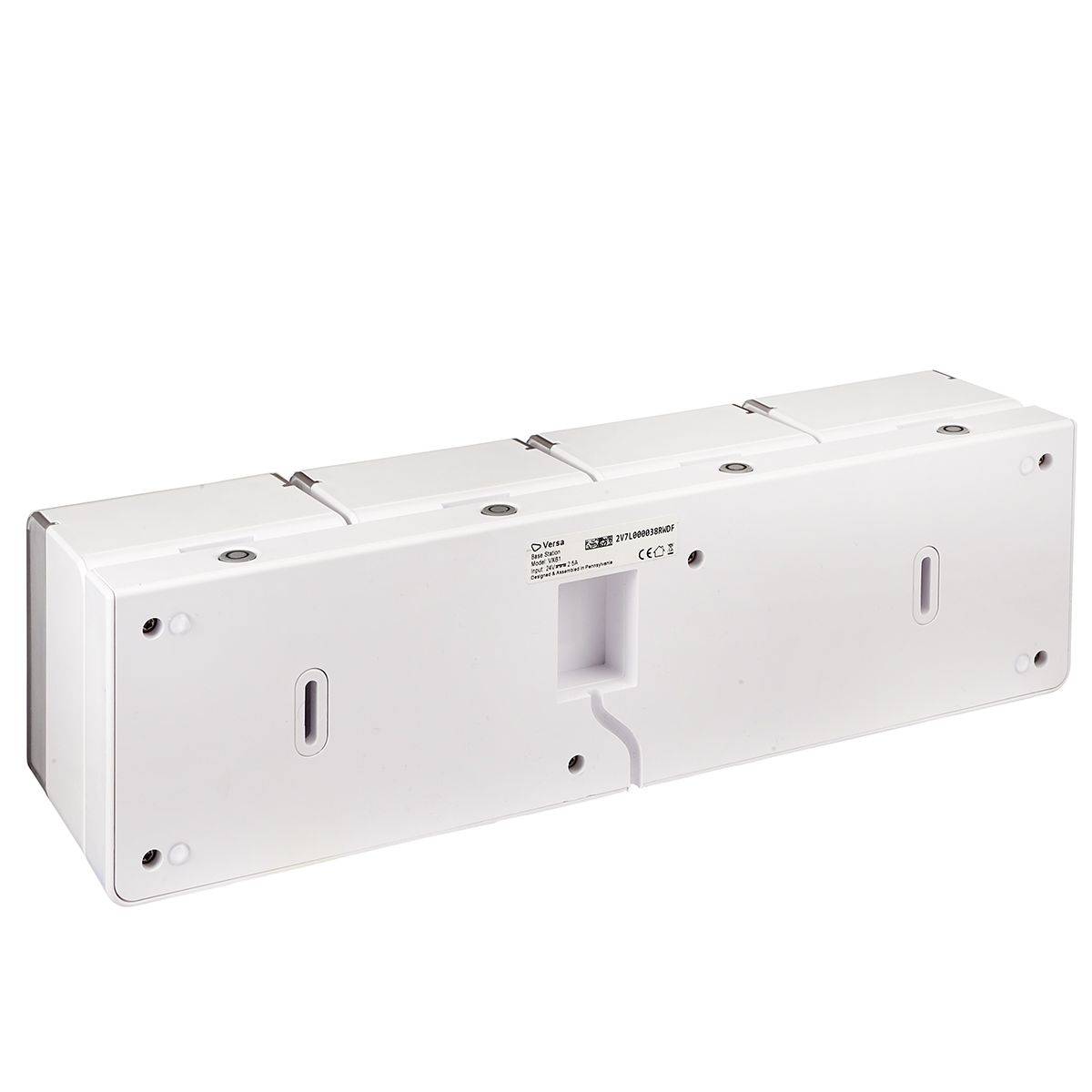

Versa Base Station

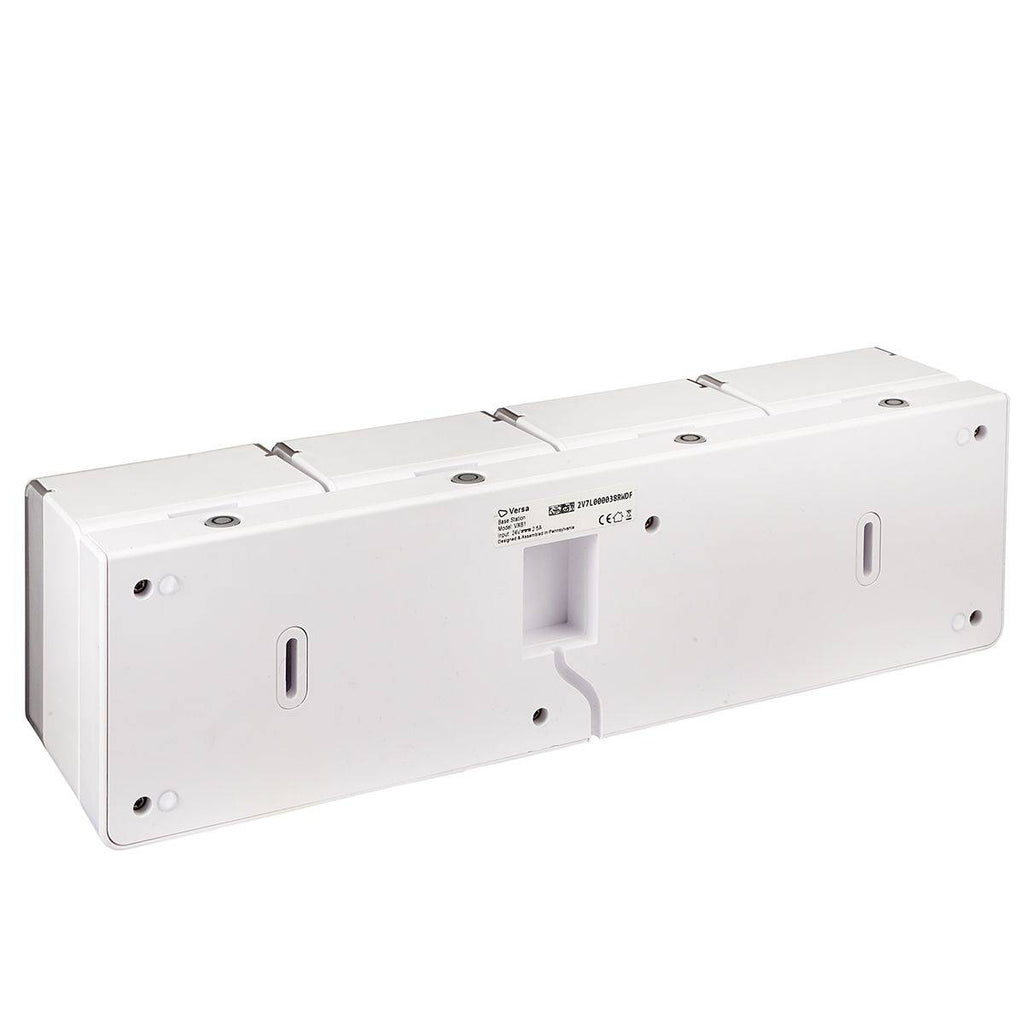

The included Versa Base Station provides a single mounting platform for all four Versa pumps. Each pump docks directly to the Base Station, creating a compact installation solution for multi-part dosing systems.

The Base Station uses one consolidated power supply for the four installed pumps and includes tactile indexing buttons for direct pump identification and operation. Up to four Versa pumps can be installed on one Base Station.

Specifications

• Number of pumps: 4

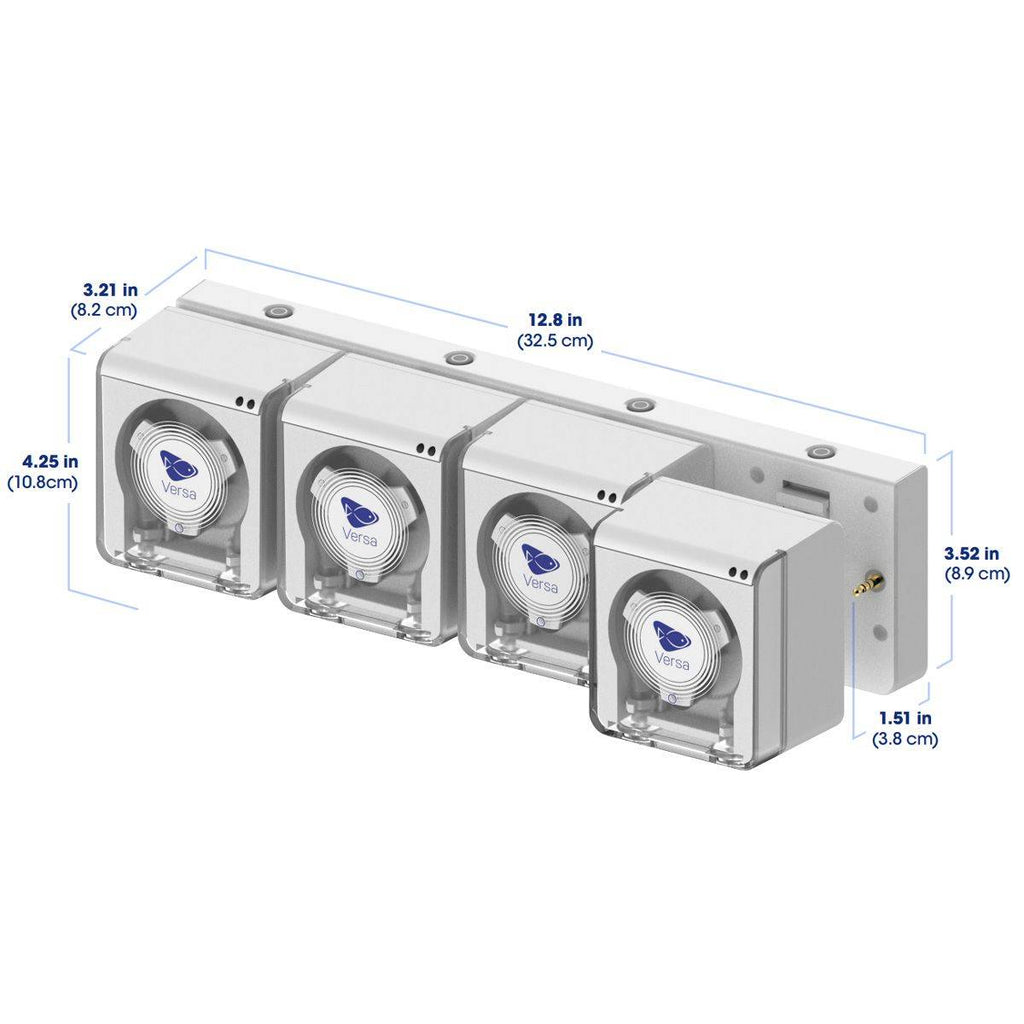

• Length: 12.80 in. / 325.12 mm
• Width: 3.21 in. / 81.5 mm
• Height: 4.21 in. / 107 mm
• Minimum dosing rate: 6μL per minute
• Maximum continuous rate: 200mL per minute
• Maximum volumetric rate: 300mL per minute
• Dosing accuracy: 2% or less
• Power consumption: 60W
• Universal input range: 110-240VAC, 50/60Hz
• Peak inrush current: 2.0A
• Control: Mobius app
• MXM Module Compatible: No

What's Included?

• 4 Versa Single Peristaltic Pumps
• Versa Base Station
• Female Push-to-Connect Adapters
• Barbed Adapters

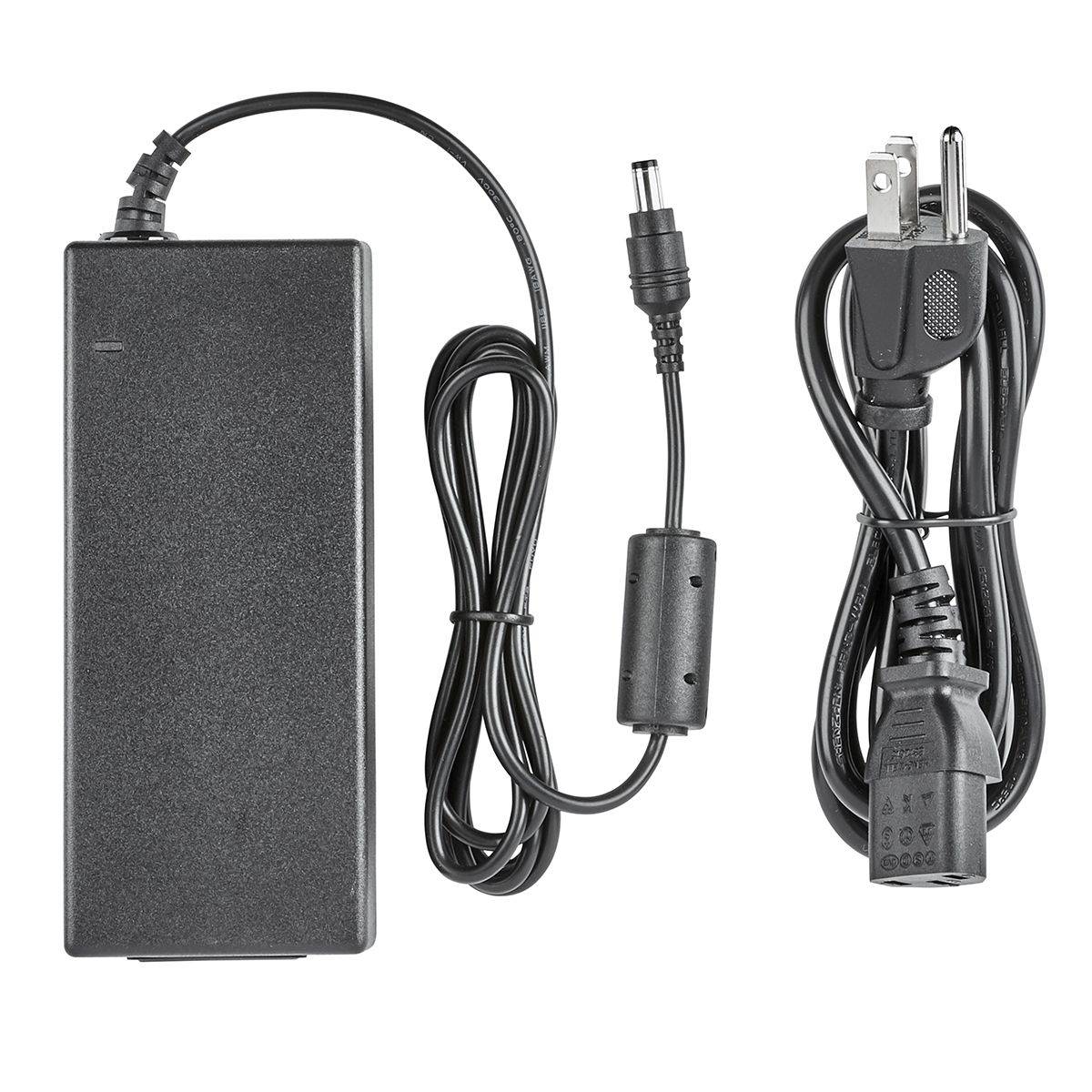

• Power Supply
